PG-FP6 V1.06 10. Connectors and Cables
R20UT4469EJ0800 Rev.8.00 Page 129 of 188
Oct.01.21
10.Connectors and Cables
10.1 Power-Supply Connector
The power-supply connector is laid out on the host interface side of the FP6.

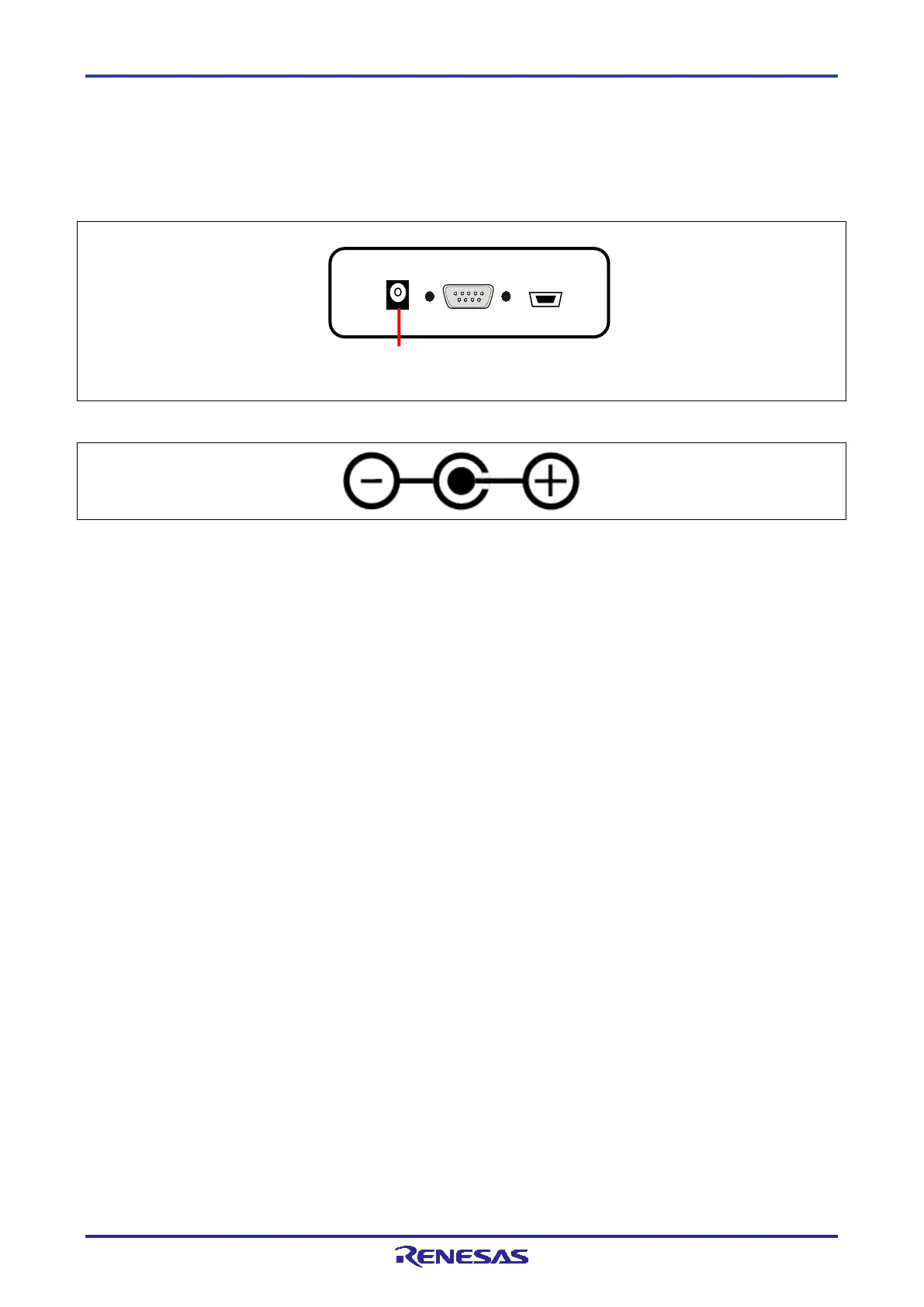

Figure 10.1 Power-Supply Connector
Figure 10.2 Pin Assignments of the Power-Supply Connector
Note: Do not connect a power adapter other than the one for the PG-FP6 to the power-supply connecter.
The following is the specification of the power-supply adapter.
• Output: 5 V/2 A
• Connector model No.: HEC0470-01-0630
