4.3.5 [Connect Settings] tabbed page
The [Connect Settings] tabbed page allows you to fill the information necessary for connecting the MCU.
Remark: The items displayed on this page vary with the type of the target device.

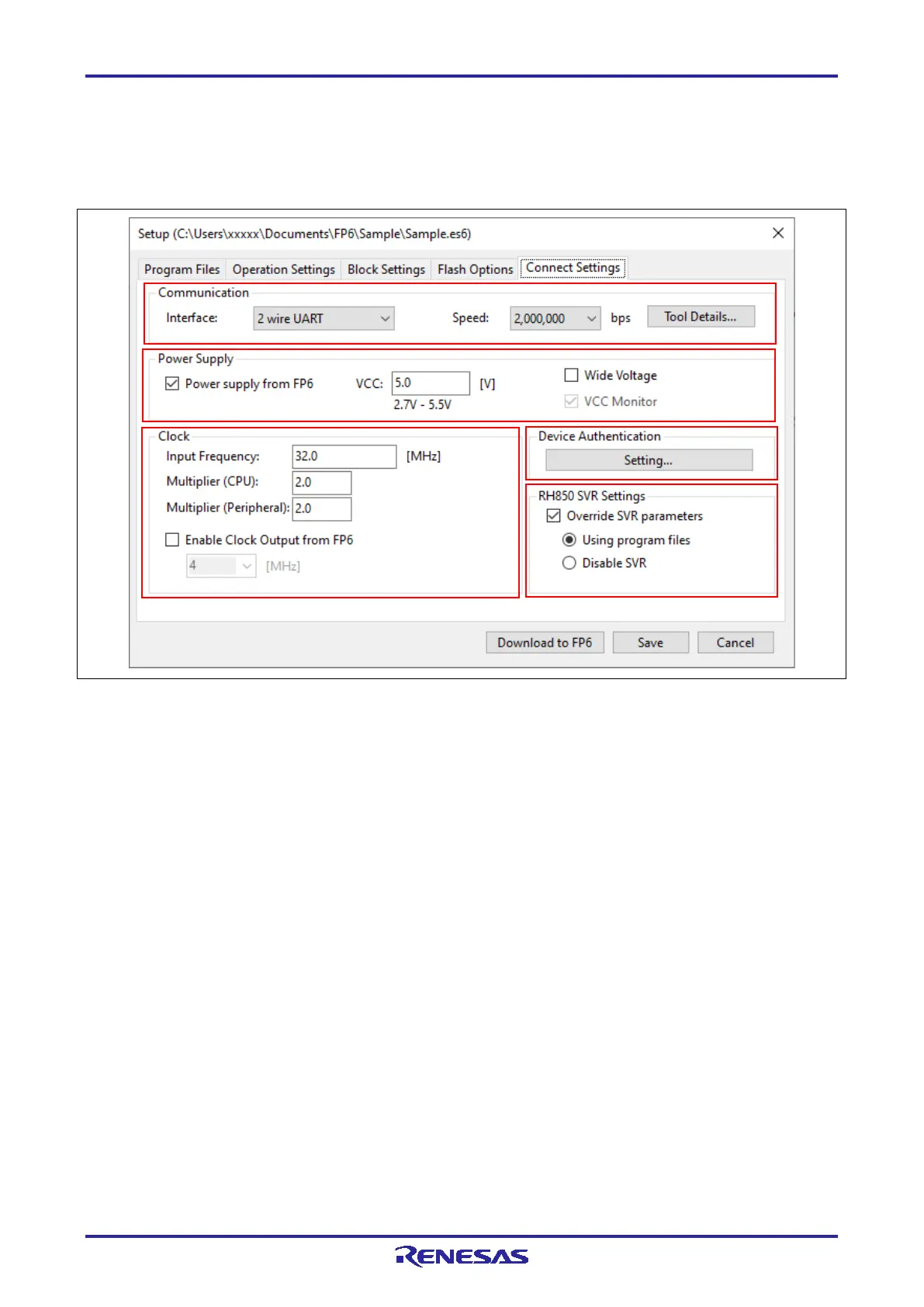

Figure 4.10 [Connect Settings] Dialog Box
(A) Communication
• Information on the programmer
The communication port and serial number of the currently connected FP6 are displayed.
Remark: You cannot select any other FP6 through this dialog box. To do so, select [Programmer]−[Setup
PC Connection] in the main window.
• Interface
Select the method for communicating with the target device.
• Speed
Select the communication speed in the communication mode selected for “Interface”.
(A)
(B)
(C)
(D)
(E)
