10.4 Target Connector
The target connector is laid out on the right side of the FP6.

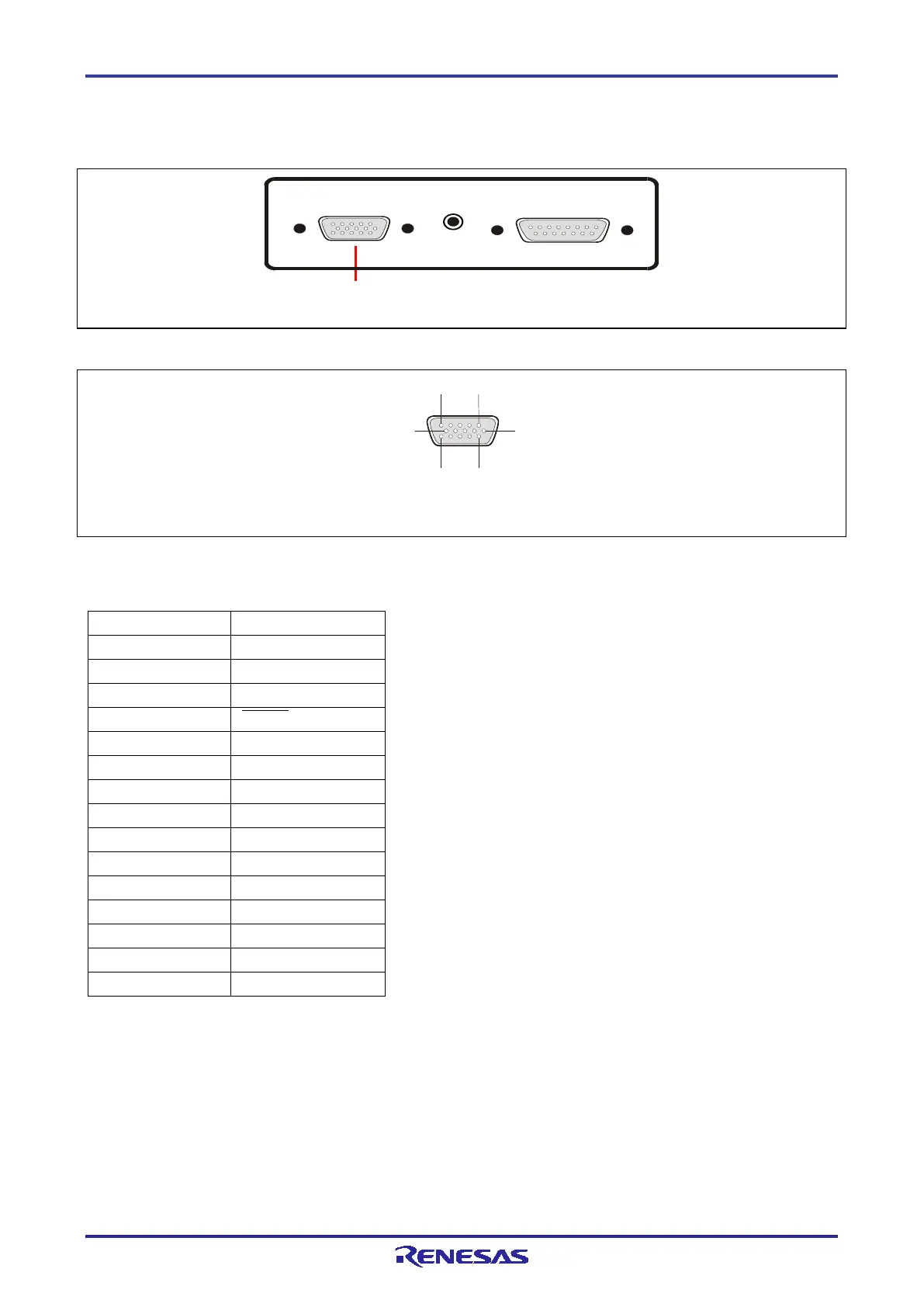

Figure 10.8 Target Connector (Target Connector Side of the FP6)
Note: Part number of the target connector (15-pin D-sub female connector): D02-M15SAG-20L9E (manufactured by
Japan Aviation Electronics Industry, Limited)
Figure 10.9 Pin Assignments of the Target Connector (15-Pin D-Sub Female Connector)
Table 10.2 Pin Configuration of the Target Connector
FP6 D-Sub 15 FP6 Signal Name
1
SO/TxD1/IO3
2
SI/RxD
3
SCK/IO4
4 RESET
¯¯¯¯¯¯
5
NC*
6
FLMD1
7
TxD2/HS
8
VCC
9
VCC
10 IO1
11
NC*
12
FLMD0/IO0
13
IO2
14 CLK/IO5
15
GND
Note: Reserved pin. Leave this pin open.
Note: For the connection with the target device, refer to chapter 11, Examples of Connections with
Microcontrollers.
1
5
10
11
6
15
Target connector
