11.19 RA (UART communications)
The following shows the conversion of each signal when a 14-pin target cable and 20-pin conversion adapter
are connected to the 15-pin D-sub connector of the PG-FP6.
Table 11.2 List of Signal Connections for RA Family
Signal Name
(PG-FP6)
15-Pin D-Sub
Male Connector
14-Pin 2.54-mm Pitch
Multipurpose Female
Connector
CoreSight 20-pin
Female Connector
RA Signal Name
VCC
8, 9
8
1
VCC
GND 15 2, 12 3, 5, 15, 17, 19 VSS
GND
-
14
9
VSS
SCK/IO4 3 1 4 MD
SI/RxD
2
5
6
TxD
TxD2/HS 7 11 8 RxD
RESET
4
13
10
RESET
Notes: 1. The value of each resistor should be in the range from 4.7 KΩ to 10 KΩ.
2. Some target devices do not require an external clock circuit. To check if the clock circuit is necessary, see the
user’s manual of the target device.
3. Switching pin 4 between use as the MD pin and as the SWCLK/TCK pin during debugging requires a switching
circuit.

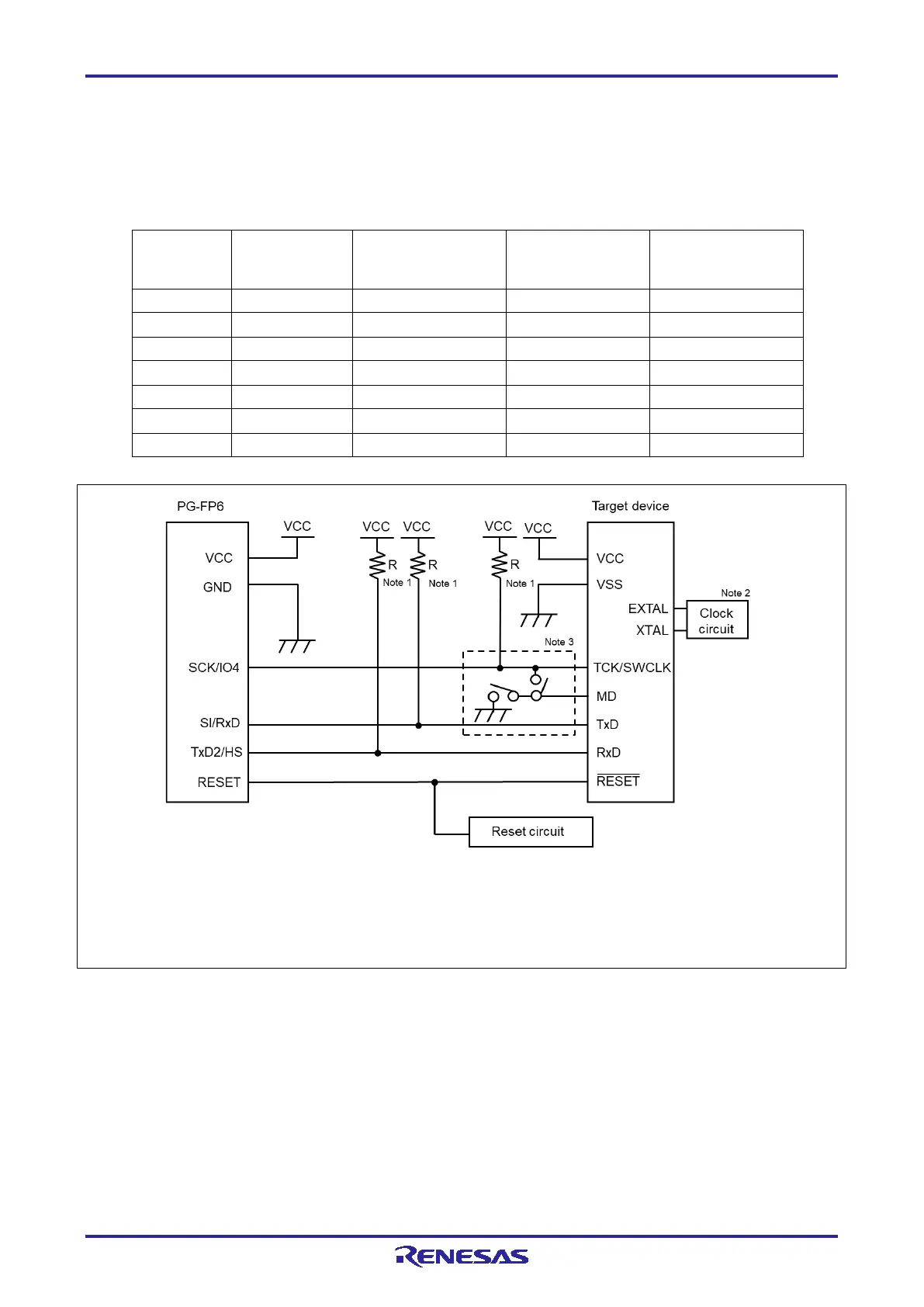

Figure 11.19 Example of a Circuit for RA6M3 (UART communications)
