PG-FP6 V1.06 11. Examples of Connections with Microcontrollers
R20UT4469EJ0800 Rev.8.00 Page 139 of 188
Oct.01.21
11.Examples of Connections with Microcontrollers
The following shows examples of interface circuits. Refer to the recommended design for the connection of
pins for the MCU. The pin names might differ depending on the target device. For details about the actual pin
names, refer to the user’s manual of each target device.
11.1 78K and V850 (UART communications)
Notes: 1. These pins do not need to be short-circuited unless the FP6 is used with the E1 or E20.
2. In case of using the alternate-function pin with a pull-up resistor, connect the pin to FLMD1 of the target
connector. In flash memory programming mode, the output on the FLMD1 pin is at the low level.

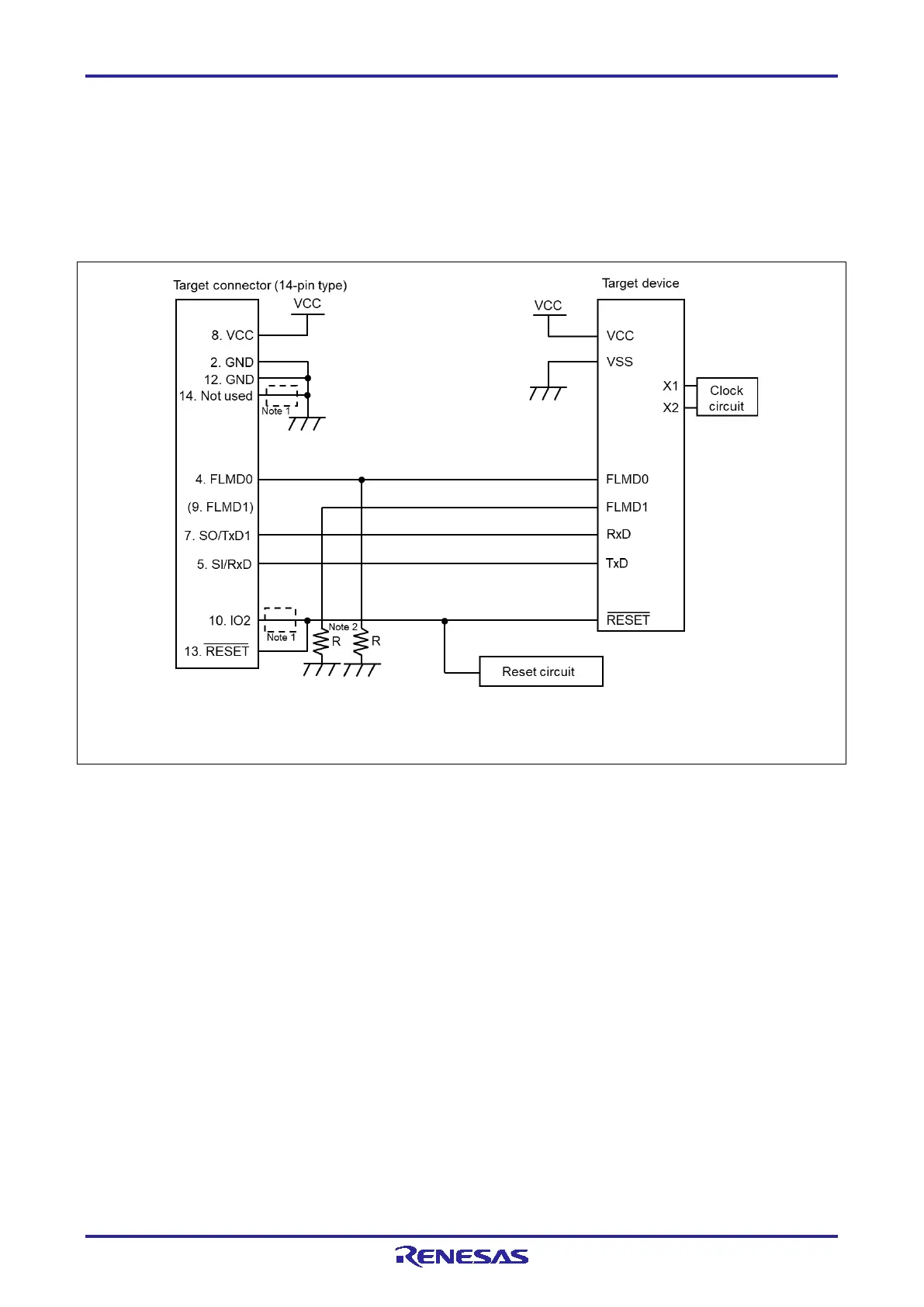

Figure 11.1 Example of a Circuit for 78K and V850 (UART − On-Chip Single-Power-Supply Flash
Memory Microcontroller)
To Next Page
