4.3 [Setup] Dialog Box

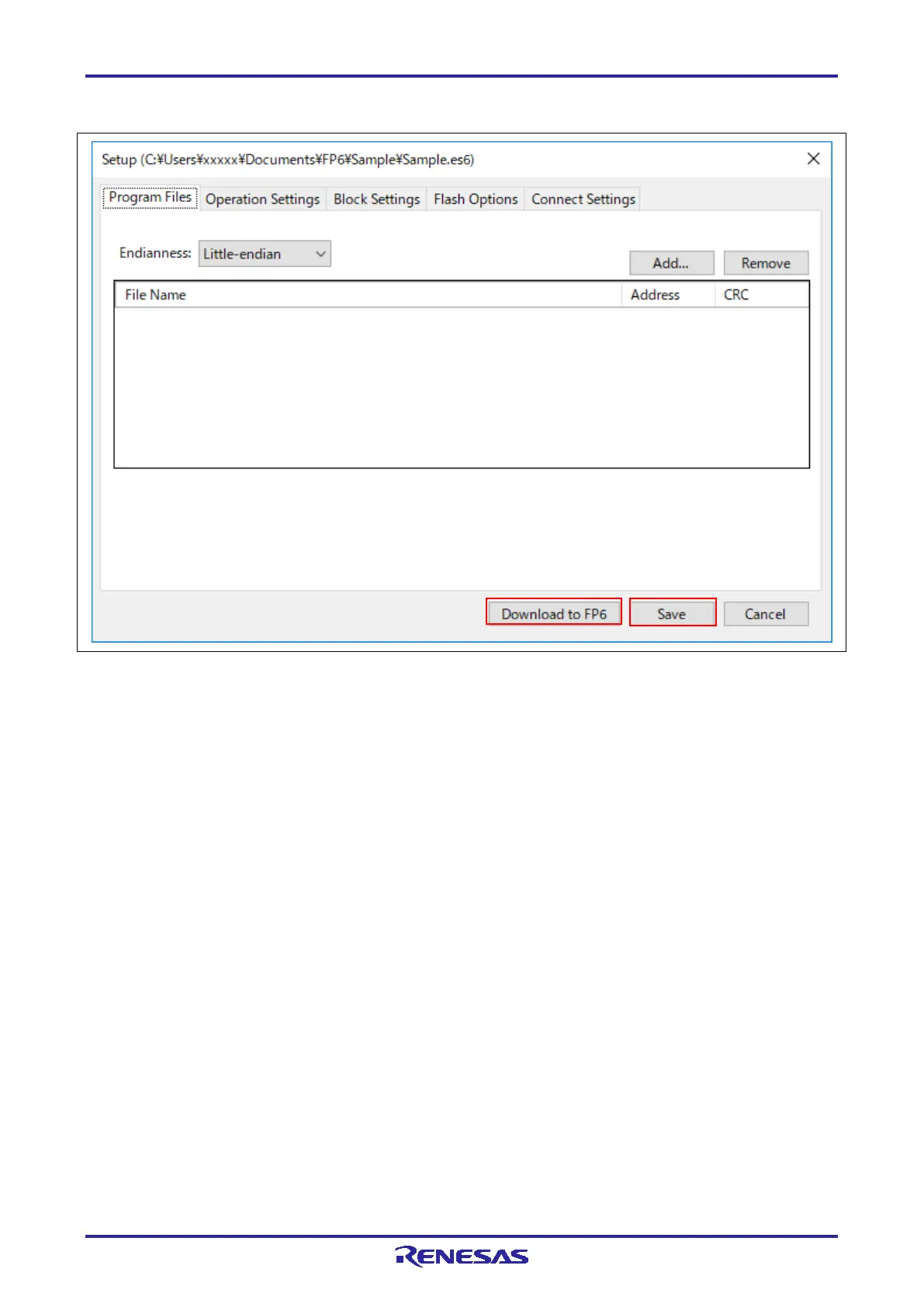

Figure 4.3 [Setup] Dialog Box
(A) [Download to FP6] button
Clicking on this button applies the changes made in the [Setup] dialog box to the setting file, and closes
the [Setup] dialog box. In addition, the setting file, parameter file, and program file are downloaded to the
FP6. This button is non-active when the FP6 is not connected.
(B) [Save] button
Clicking on this button applies the changes made in the [Setup] dialog box to the setting file, and closes
the [Setup] dialog box. Unlike the [Download to FP6] button, no files are downloaded to the FP6.
(A)
(B)
