PG-FP6 V1.06 10. Connectors and Cables
R20UT4469EJ0800 Rev.8.00 Page 133 of 188
Oct.01.21
10.4.1 Target cable (14-pin type)
The target cable (14-pin type) is a standard shielded cable and is approximately 42 centimeters long. The
target cable is equipped with a 15-pin D-sub male connector and a 14-pin 2.54-mm pitch multipurpose
female connector.
Note: The following are the recommended connectors to be connected to the 14-pin 2.54-mm pitch
multipurpose female connectors.
• 7614-6002 (straight angle type manufactured by 3M Japan Limited)
• 2514-6002 (straight angle type manufactured by 3M Limited)

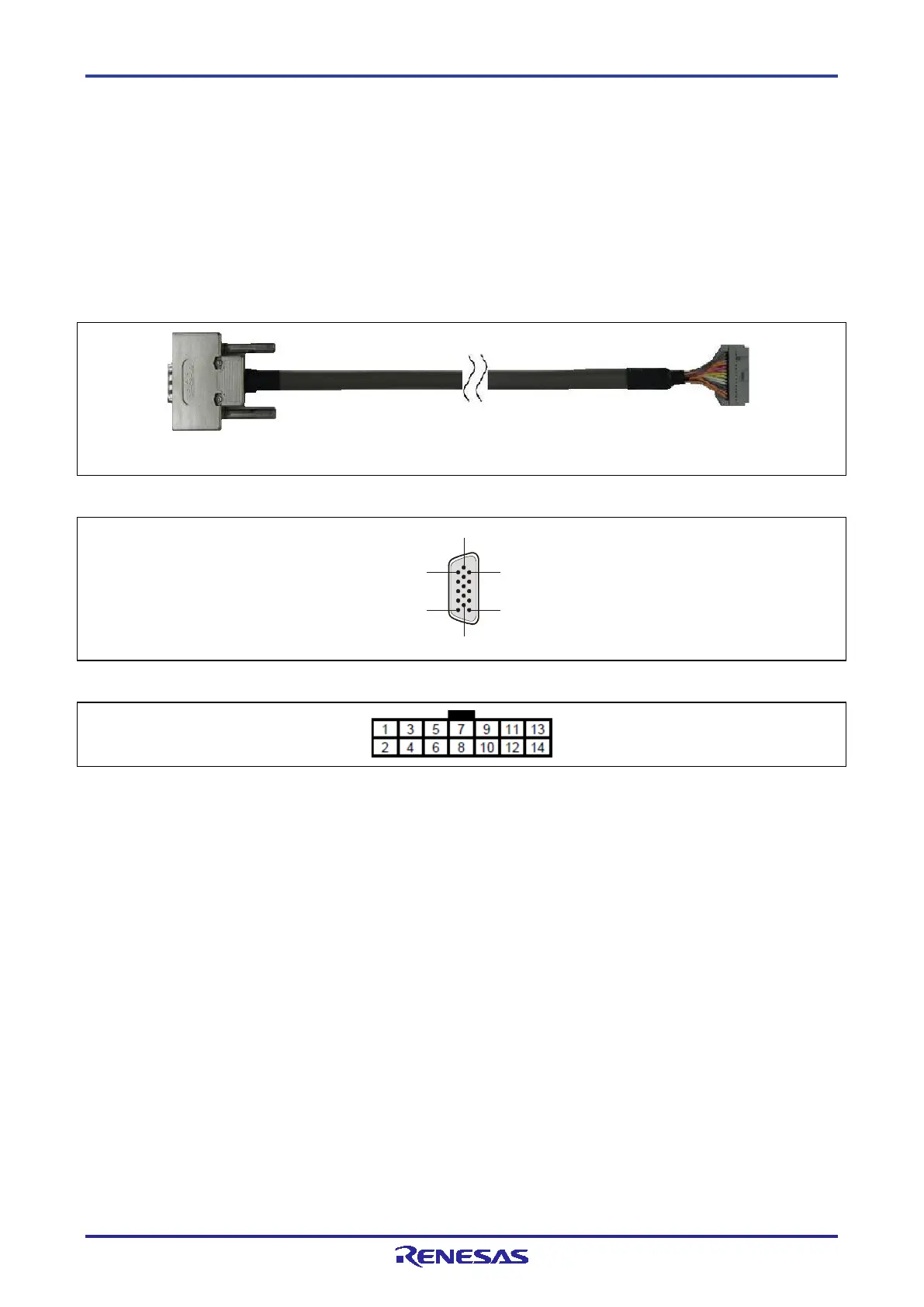

Figure 10.10 Appearance of the Target Cable (14-Pin Type)
Figure 10.11 Pin Assignments of the 15-Pin D-Sub Male Connector of the Target Cable (14-Pin Type)
Figure 10.12 Appearance of the 14-Pin 2.54-mm Pitch Multipurpose Female Connector of the Target
Cable (14-Pin Type) (View from the Socket Side)
1
5
6
11
10
15
14-pin 2.54-mm pitch multipurpose
female connector
15-pin D-sub male connector
