10.2 Serial Connector
The serial connector (9-pin D-sub male connector) is laid out on the host interface side of the FP6.

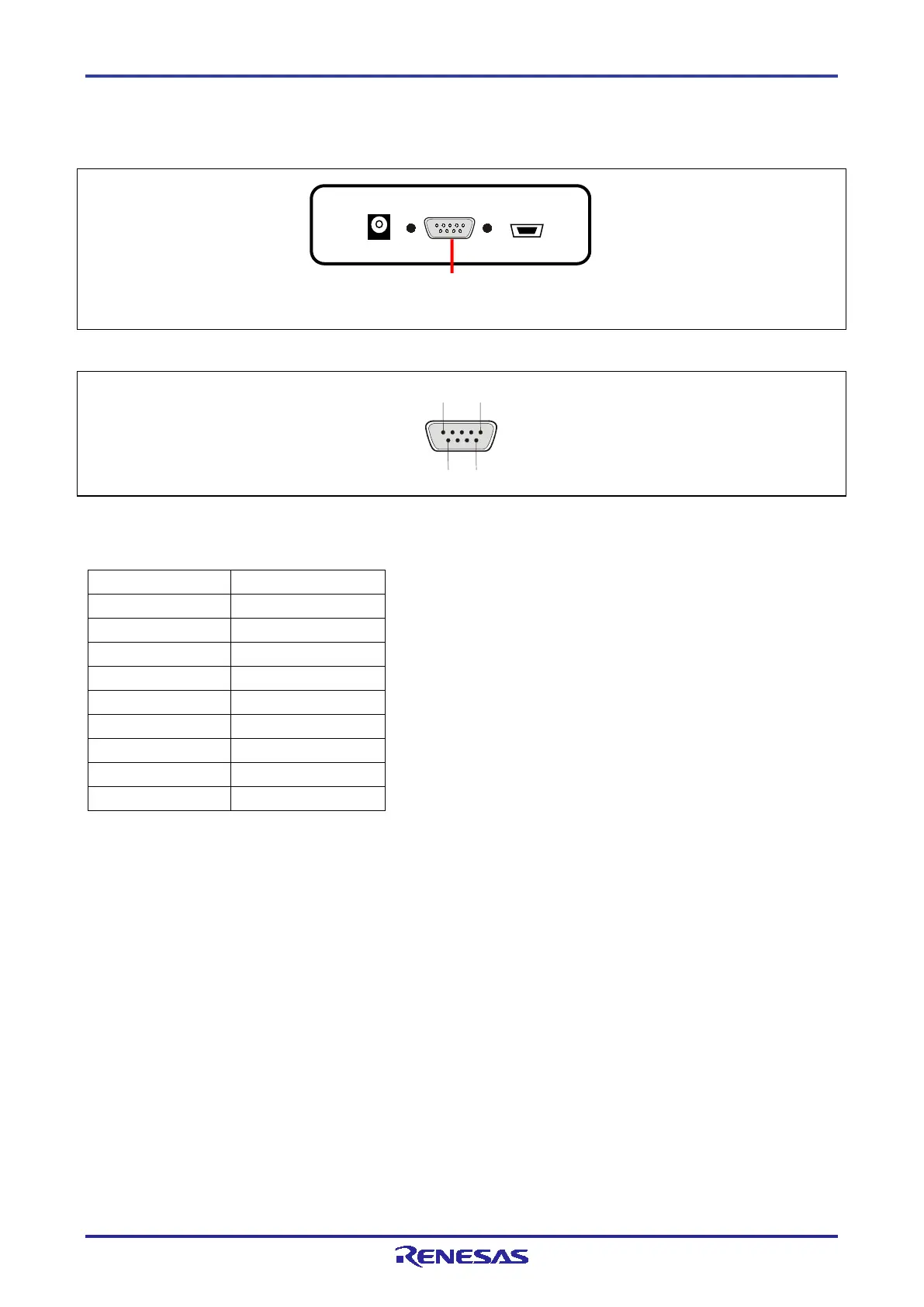

Figure 10.3 9-Pin D-Sub Serial Connector
Figure 10.4 Pin Assignments of the Serial Connector
Table 10.1 Pin Configuration of the 9-Pin D-Sub Serial Connector
Serial Connector
Signal Name
1
NC
2
RxD
3 TxD
4
NC
5
VSS
6
NC
7 RTS
8
CTS
9
NC
Note: Part number of the serial connector (9-pin D-sub male connector): DELC-J9PAF-20L9E (manufactured by Japan
Aviation Electronics Industry, Limited)
1
5
9
6
Serial port
