PG-FP6 V1.06 11. Examples of Connections with Microcontrollers
R20UT4469EJ0800 Rev.8.00 Page 149 of 188
Oct.01.21
11.15 RH850 type 1 (2-wire UART or CSI communications)
Notes: 1. These pins do not need to be short-circuited unless the FP6 is used with the E1, E20, or E2.
2. In case of using the alternate-function pin with a pull-up resistor, connect the pin to IO1 of the target connector.
In serial programming mode, the output on the IO1 pin is at the low level.
3. These pins do not need to be short-circuited when using 2-wire UART.

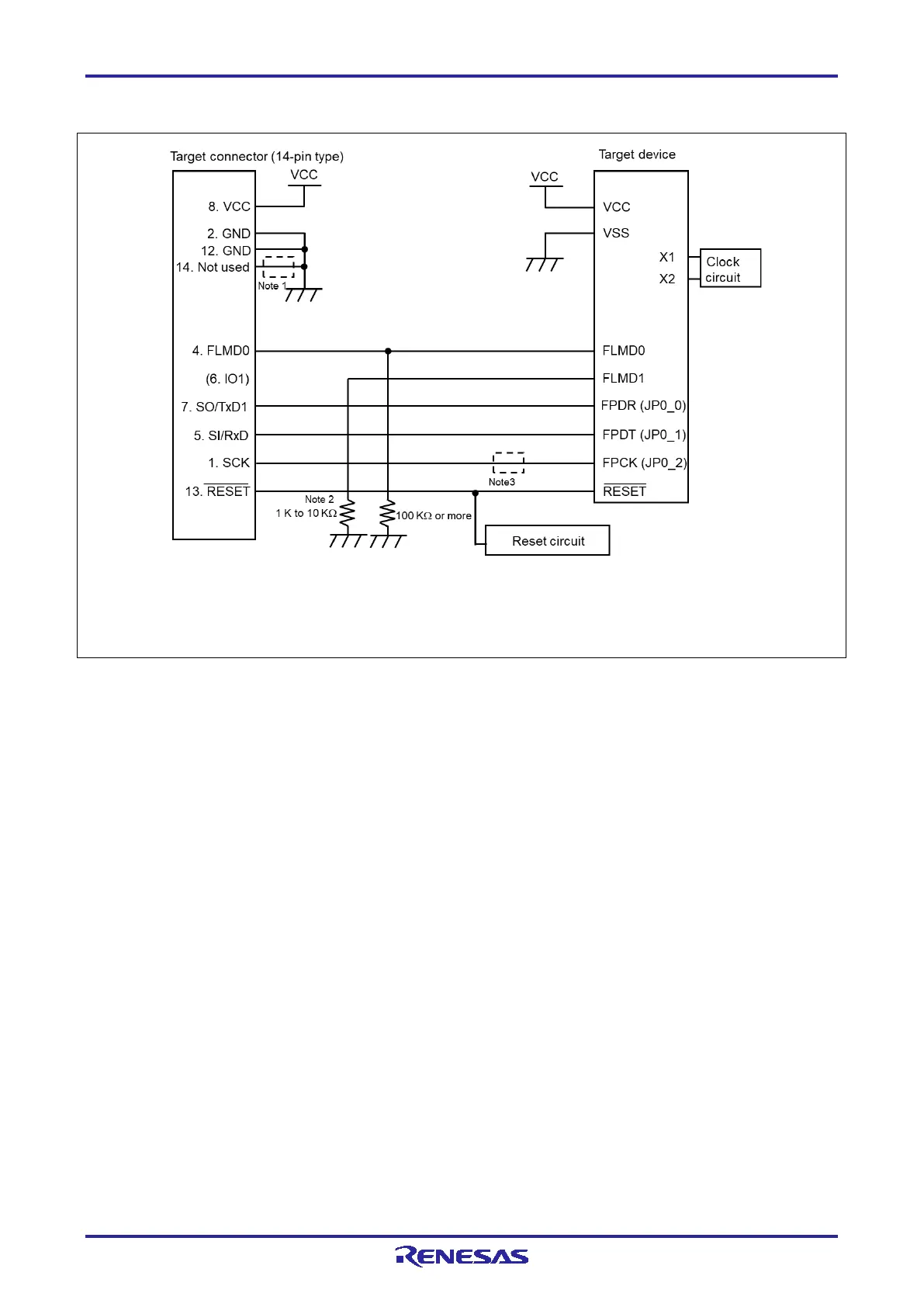

Figure 11.15 Example of a Circuit for RH850 Family (2-Wire UART or CSI) (Case of RH850/F1x)
