Appendix C. Equivalent Circuits of the Target Interface
This chapter shows equivalent circuits of the target interface.

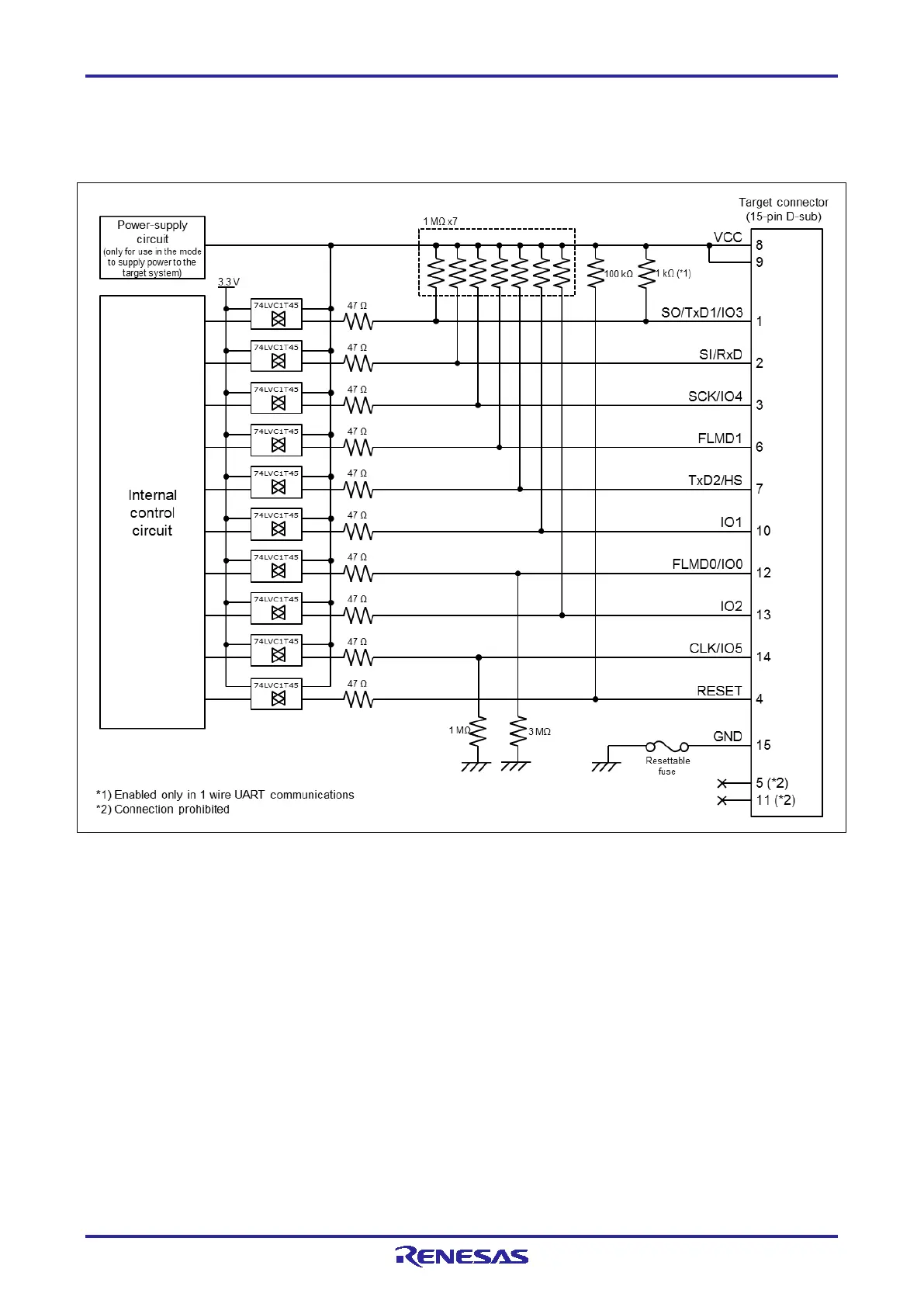

Figure C.1 Equivalent Circuits of the Target Interface
