10.5.1 GND cable
The GND cable is approximately one meter long. The cable is equipped with a banana jack and a spade
terminal.
Note: The FP6 and target system may be damaged if there are differences in potential between the
grounds of the FP6 and of the target system. Use the GND cable to eliminate differences in potential
before connecting the target cable.
Note: Part number of the banana jack: TJ-2167 (manufactured by Sato Parts Co., Ltd.)
Part number of the spade terminal: BPF1.25-3 (red) (manufactured by Daido Solderless Terminals Mfg. Co., Ltd.)

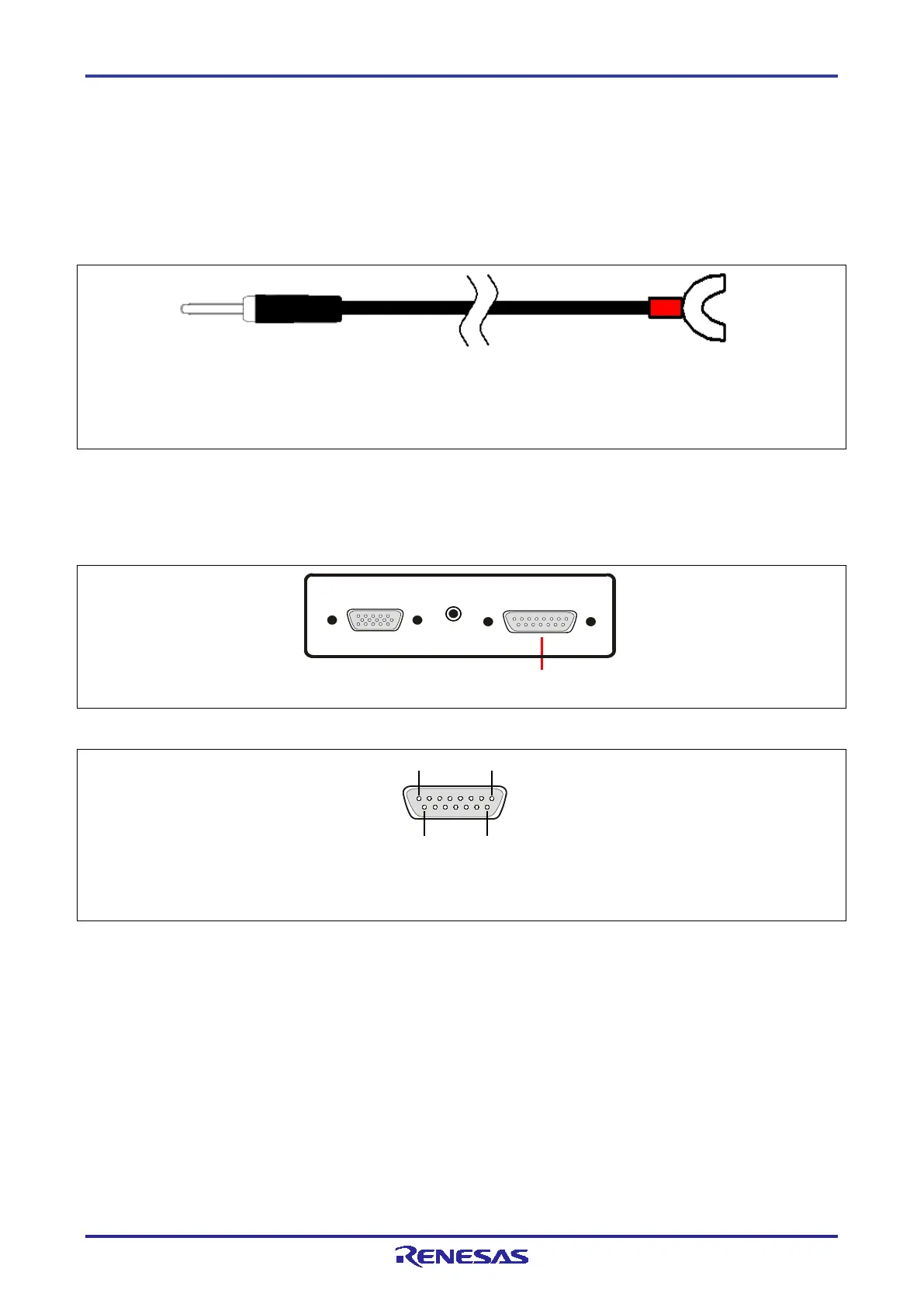

Figure 10.14 Appearance of the GND Cable
10.6 Remote Connector
The remote connector (a 15-pin D-sub female connector) is laid out on the target connector side of the FP6.
Figure 10.15 Remote Connector (Target Connector Side of the FP6)
Note: Part number of the remote connector (a 15-pin D-sub female connector): DALC-J15SAF-20L9E (manufactured by
Japan Aviation Electronics Industry, Limited)
Figure 10.16 Pin Assignments of the Remote Connector (15-Pin D-Sub Female Connector)
The remote connector pins of the FP6 have the following functions. Table 10.5 shows the pin numbers on
the remote connector of the FP6. Each input pin is pulled-up inside the FP6.
Banana jack
Spade terminal
Remote connector
15
9
8
1
