11.3 78K and V850 (CSI-H/S communications)
Notes: 1. These pins do not need to be short-circuited unless the FP6 is used with the E1 or E20.
2. In case of using the alternate-function pin with a pull-up resistor, connect the pin to FLMD1 of the target
connector. In flash memory programming mode, the output on the FLMD1 pin is at the low level.

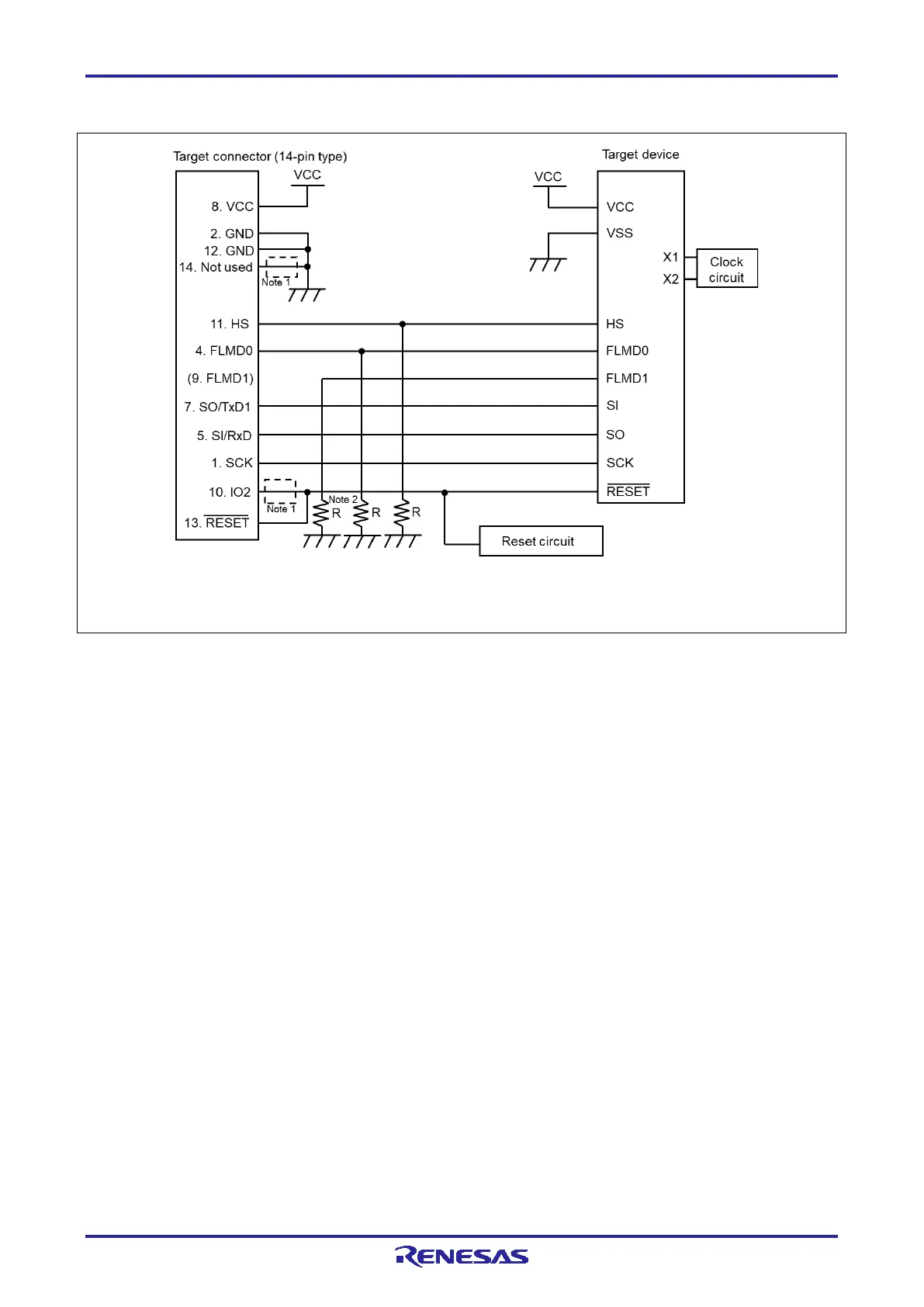

Figure 11.3 Example of a Circuit for 78K and V850 (CSI-H/S − On-Chip Single-Power-Supply Flash
Memory Microcontroller)
