10.2.1 Serial cable connected to the 9-pin D-sub serial connector
A serial cross cable is additionally required. The connectors on both sides are 9-pin D-sub female
connectors. The following shows the connection.

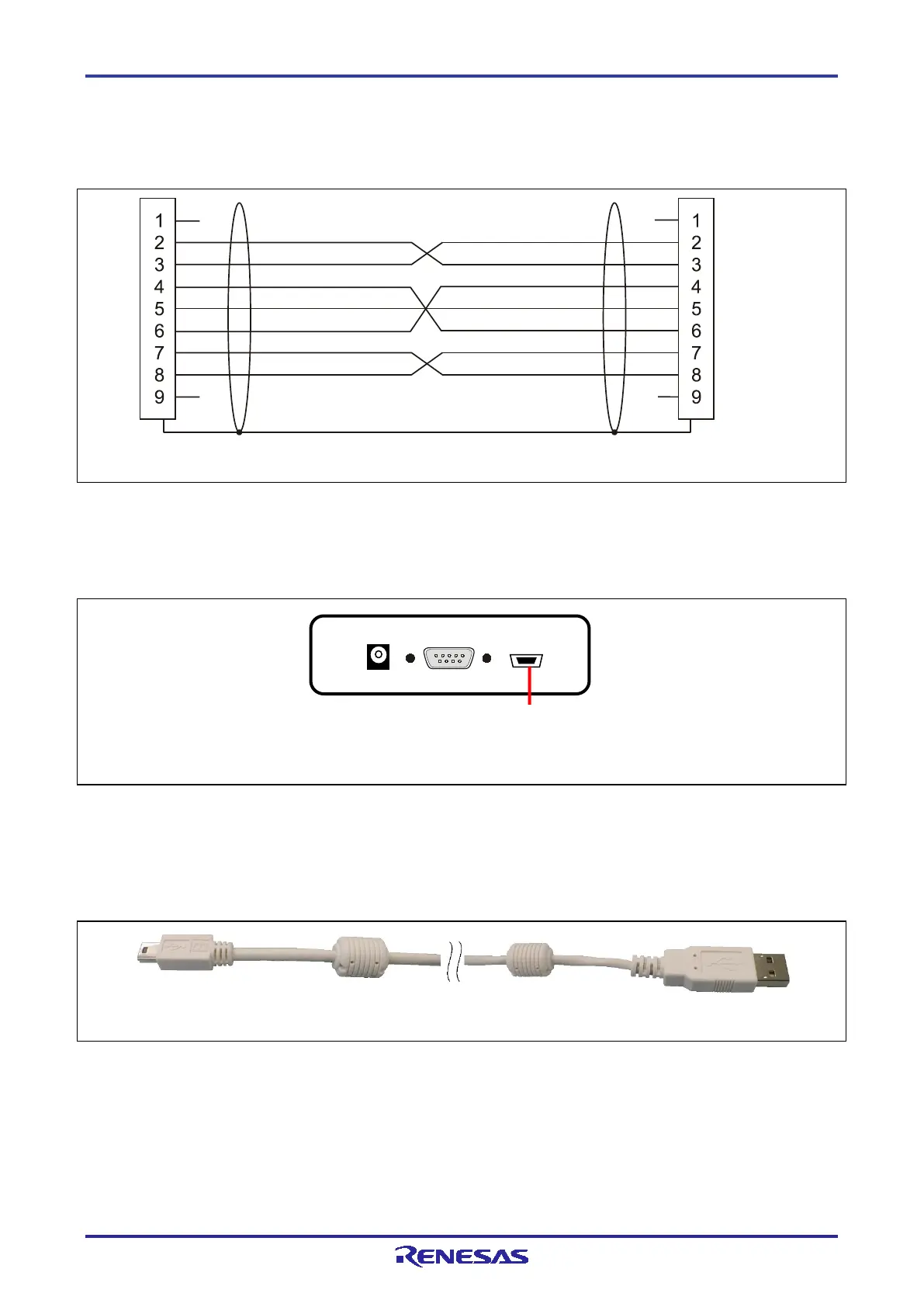

Figure 10.5 Connection of the Serial Cable
10.3 USB Connector
The mini-B type USB connector is laid out on the host interface side of the FP6.
Note: Part number of the mini-B USB connector: UX60SC-MB-5S8 (manufactured by Hirose Electric Co., Ltd.)
Figure 10.6 USB Connector (Host Interface Side of the FP6)
10.3.1 USB cable
The USB cable is approximately two meters long. The cable is equipped with a USB mini-B type connector
and USB A type connector.
Figure 10.7 Appearance of the USB Cable
USB connector
USB mini
-B type
USB A type
