11.4 78K0S (Single-wire UART communications)
Note: These pins do not need to be short-circuited when using the FP6. Short-circuit them if necessary.

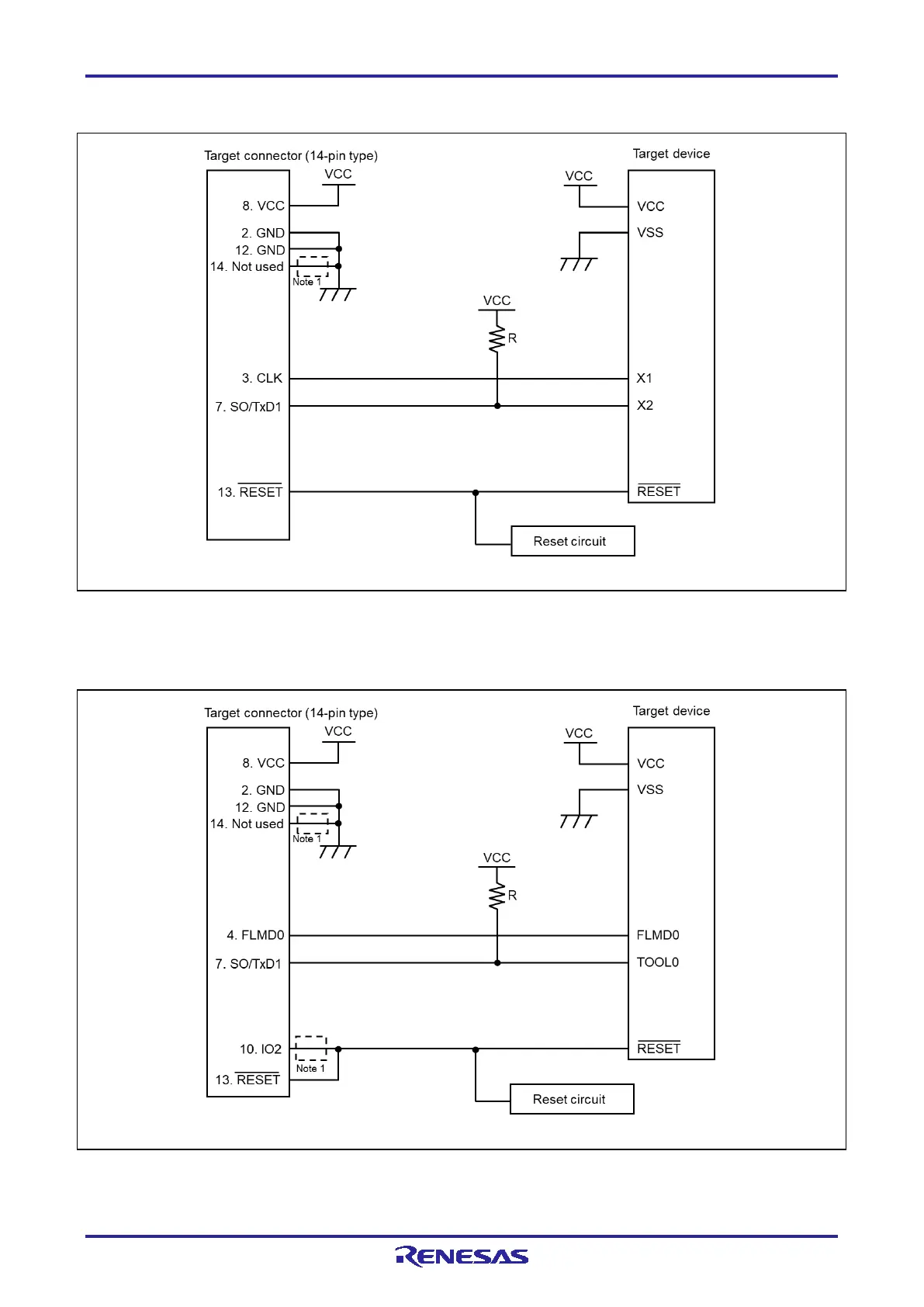

Figure 11.4 Example of a Circuit for 78K0S (Single-Wire UART)
11.5 78K0R (Single-wire UART communications)
Note: These pins do not need to be short-circuited when using the FP6. Short-circuit them if necessary.
Figure 11.5 Example of a Circuit for 78K0R (Single-Wire UART)
