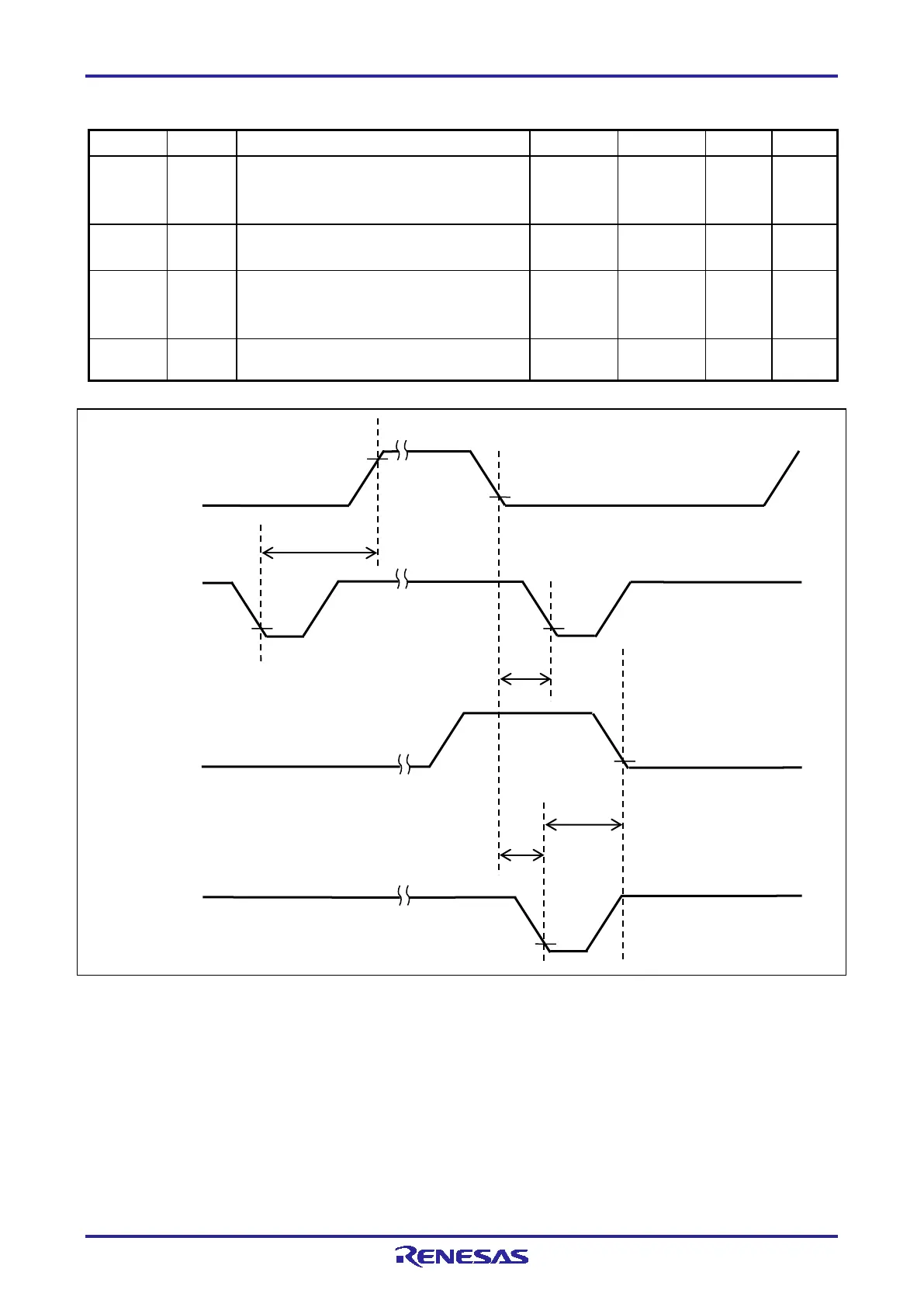

PG-FP6 V1.06 Appendix D. Electrical Specifications of the Remote Interface
R20UT4469EJ0800 Rev.8.00 Page 179 of 188
Oct.01.21
(2)
Pin name Symbol Parameter or Conditions MIN. TYP. MAX. Unit
t
PINBU
Time from the fall of the VRF, START,
or ENTER signal until the rise of the
BUSY signal


50
ms
t
PBUIN
Time from the fall of the BUSY signal
until the CLEAR signal can be input
1


ms
t
PCLPE
Time from the fall of the CLEAR signal
until the fall of the PASS or ERROR
signal
  50 ms
t
PPEIN
Time from the fall of the BUSY signal until the
VRF, START, or ENTER signal can be input
  1 ms
BUSY
t PBUIN
t PCLPE
t PINBU
PASS
ERROR
ENTER
START
VRF
t PPEIN
CLEAR
