Connecting to the Ethernet Interface
This section describes how to connect Ethernet interface cable to the Ethernet interface.
• If the main power switch is on, turn it off.
• Use the following Ethernet cables.
• Unshielded Twisted Pair Cable (UTP) or Shielded Twisted Pair Cable (STP) and Category type
5 or more

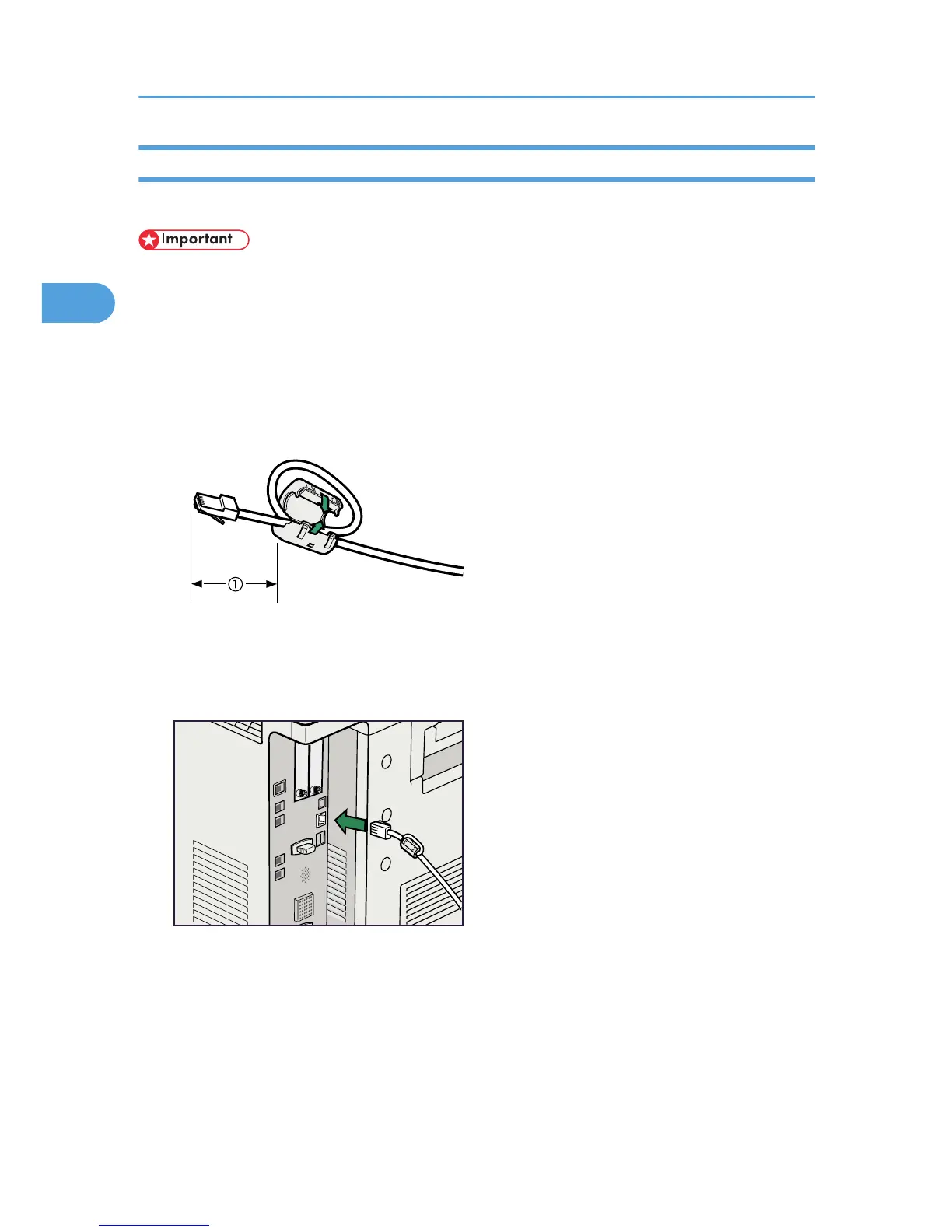

1. A ferrite core for the Ethernet interface cable is supplied with this machine. Make a loop in
the cable about 5 cm ( 2.1 inch) (1) from the machine end of the cable. Attach the ferrite core.
2. Make sure the main power switch of the machine is off.
3. Connect the Ethernet interface cable to the 10BASE-T/100BASE-TX port.
4. Connect the other end of the Ethernet interface cable to a network connection device such
as a hub.
2. Connecting the Machine
68
