Installation: G3 Interface Unit Type 9001 (D418-06)
SM 19 D418
Fax Option
Type 9001
D418

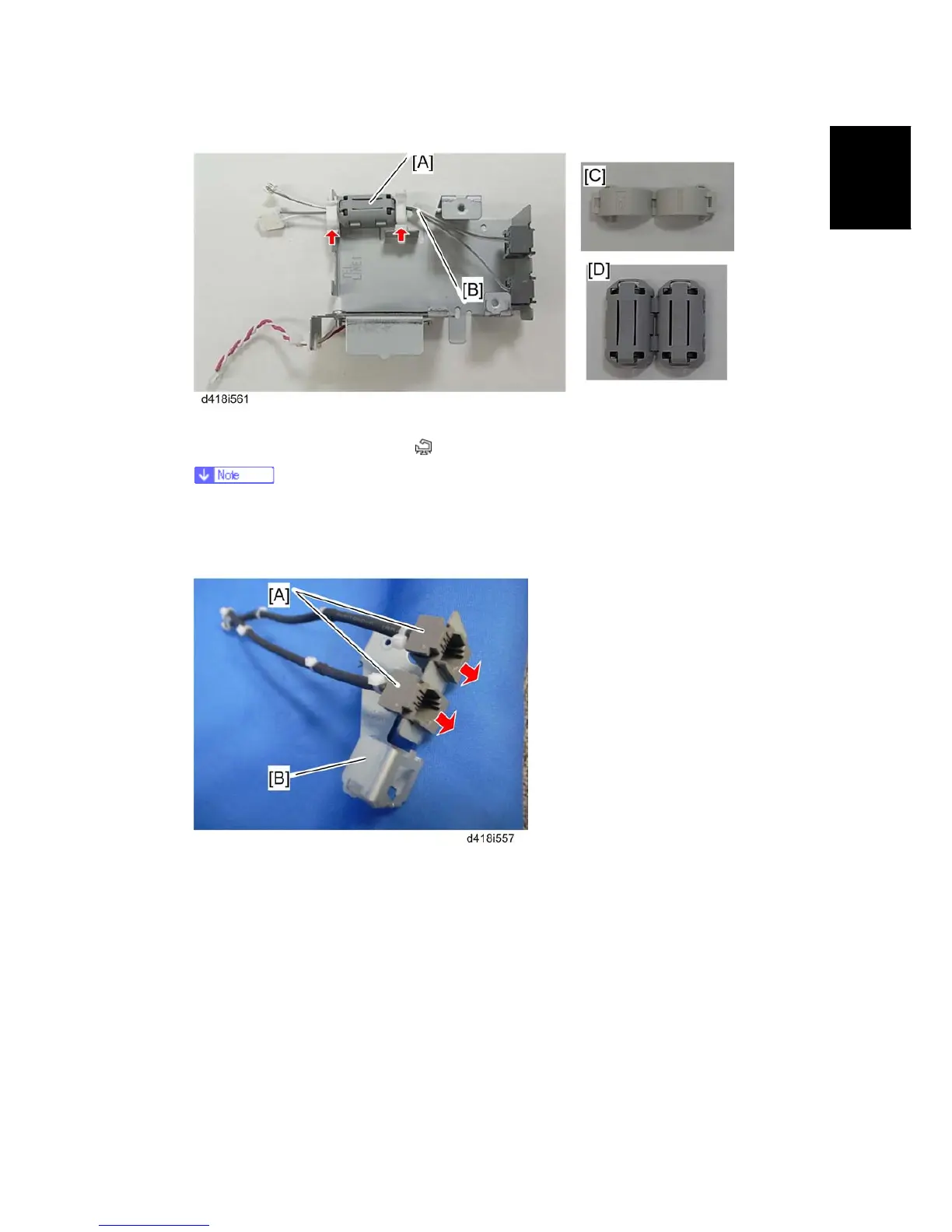

11. Attach the ferrite core (provided with the Fax Unit) [A] to the cables [B] on the speaker
unit, and then clamp the cables (
x 2).
 The required ferrite core is different depending on the area. For EU/ ASIA/
China, use the ferrite core (ZCAT1730-730A) [C]. For NA/ Taiwan, use the
ferrite core (TFC-25-15-12A) [D].
12. Attach two modular jacks [A] to the G3 connector bracket [B].
