Electrical Components: 1st Stopper
SM 21 D454
Multi-Folding
Unit FD5000
D454

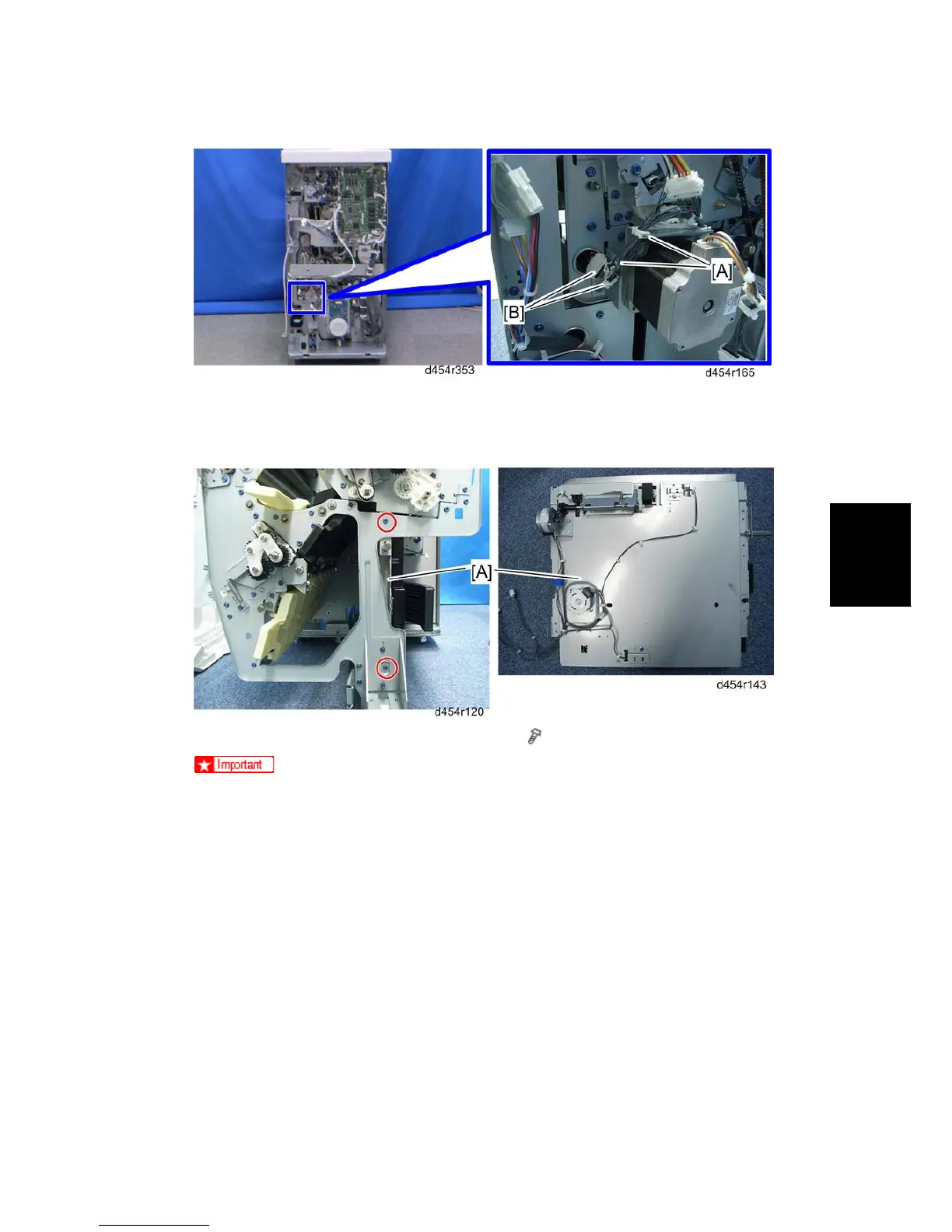

9. Release two clamps [A].
10. Disconnect two connectors [B].
11. Pull out the folding unit drawer ( p.6).
12. Hold the 1st stopper unit [A], and then remove it (
x 2).
The 1st stopper unit cannot hang the folding unit drawer without the two screws.
If you remove the 1st stopper unit without any support, the 1st stopper unit can
fall and be broken.
1.3.8 POSITIONING ROLLER MOTOR
1. 1st stopper unit ( p.19)
