Replacement and Adjustment
D454 22 SM

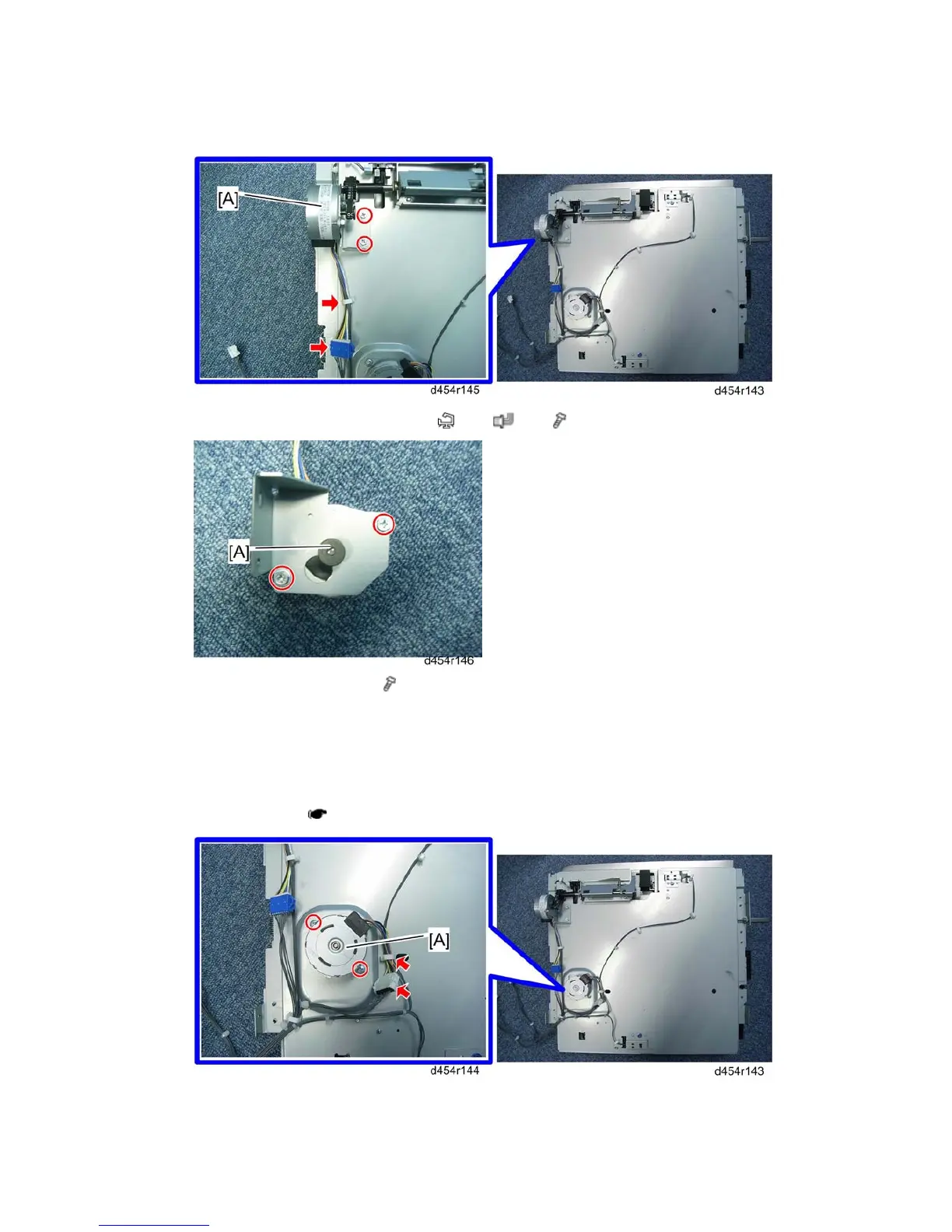

2. Positioning roller motor bracket [A] (
x 1, x 1, x 2)
3. Positioning roller motor [A] (
x 2)
1.3.9 1ST STOPPER MOTOR
1. 1st stopper unit ( p.19)
