Electrical Components: 1st Stopper
SM 23 D454
Multi-Folding
Unit FD5000
D454

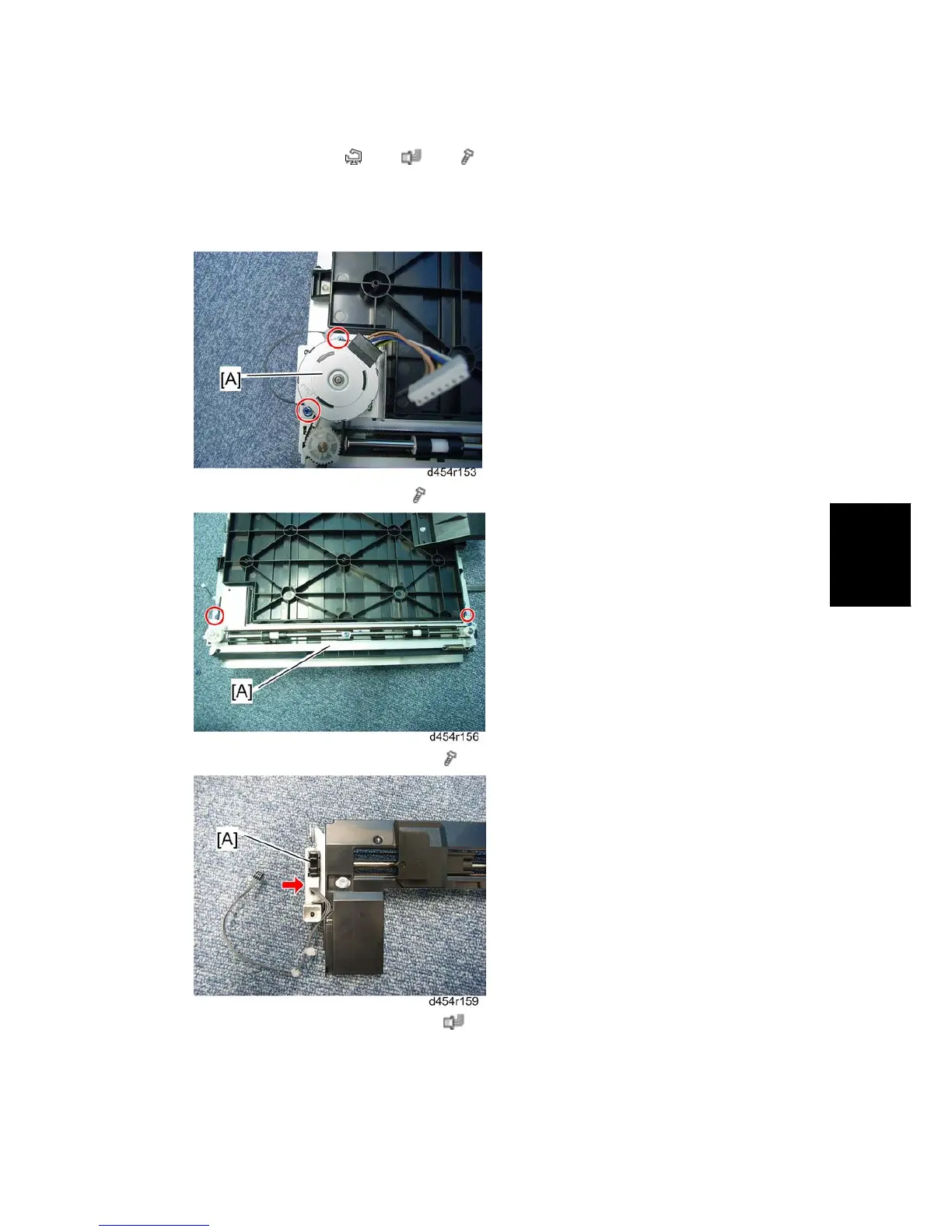

2. 1st stopper motor [A] ( x 1, x 1, x 2)
1.3.10 JOGGER FENCE HP SENSOR
1. 1st stopper unit ( p.19)
2. Jogger fence motor bracket [A] (
x 2)
3. Jogger fence timing belt bracket [A] (
x 2)
4. Jogger fence HP sensor [A] (hooks,
x 1)
1.3.11 POSITIONING ROLLER HP SENSOR
1. 1st stopper unit (p.19)
