Replacement and
Adjustment
D454 24
SM
2.

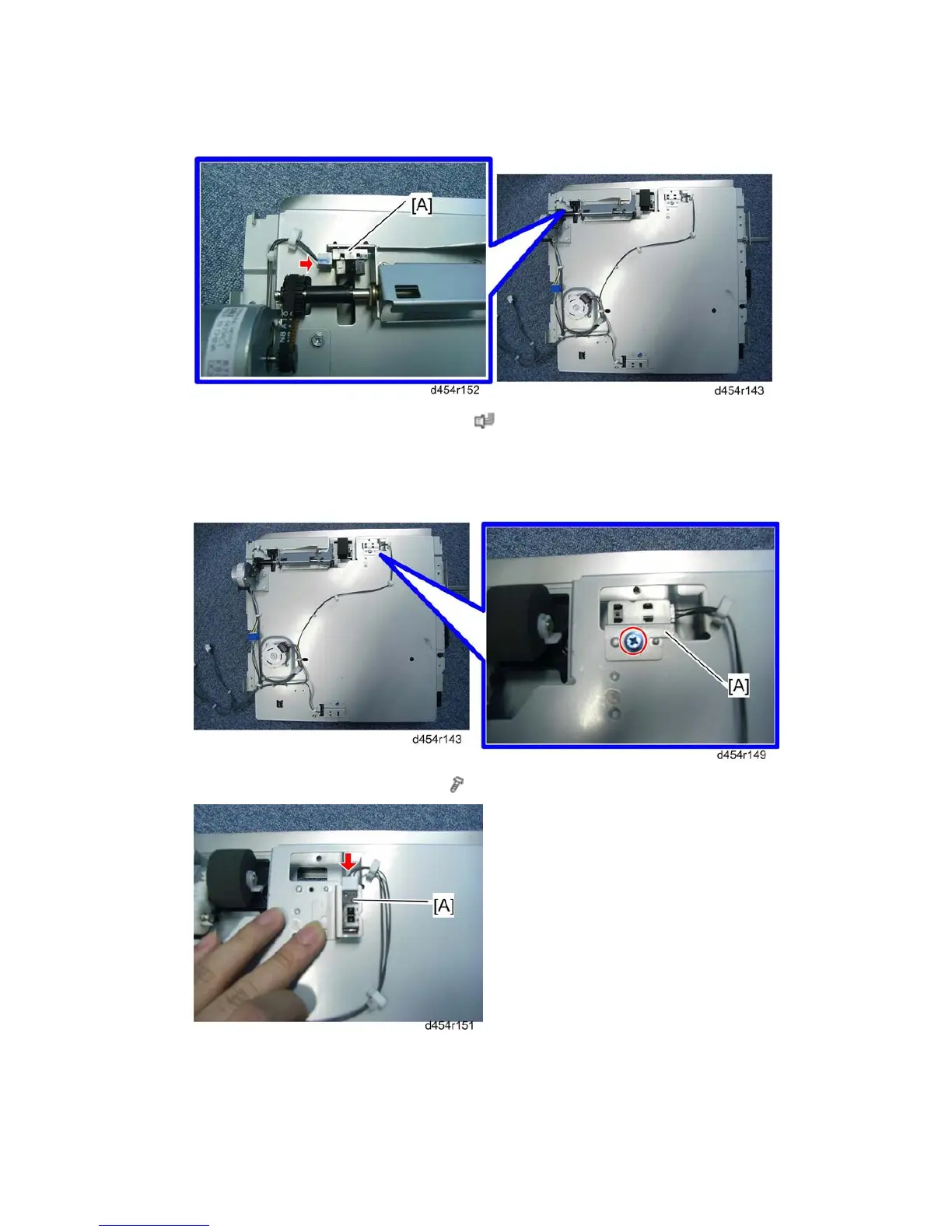

Positioning Roller HP sensor [A] (hooks,
x
1)
1.3.12 1ST
STOPPE
R PAPER SENSOR
1.
1st stopper unit (
p.19)
2.
1st stopper paper sensor bracket [A] (
x
1)
3.
1st stopper paper sensor [A] (hooks)
