Replacement and Adjustment
D454 36 SM
2. Rear lower cover ( p.4)

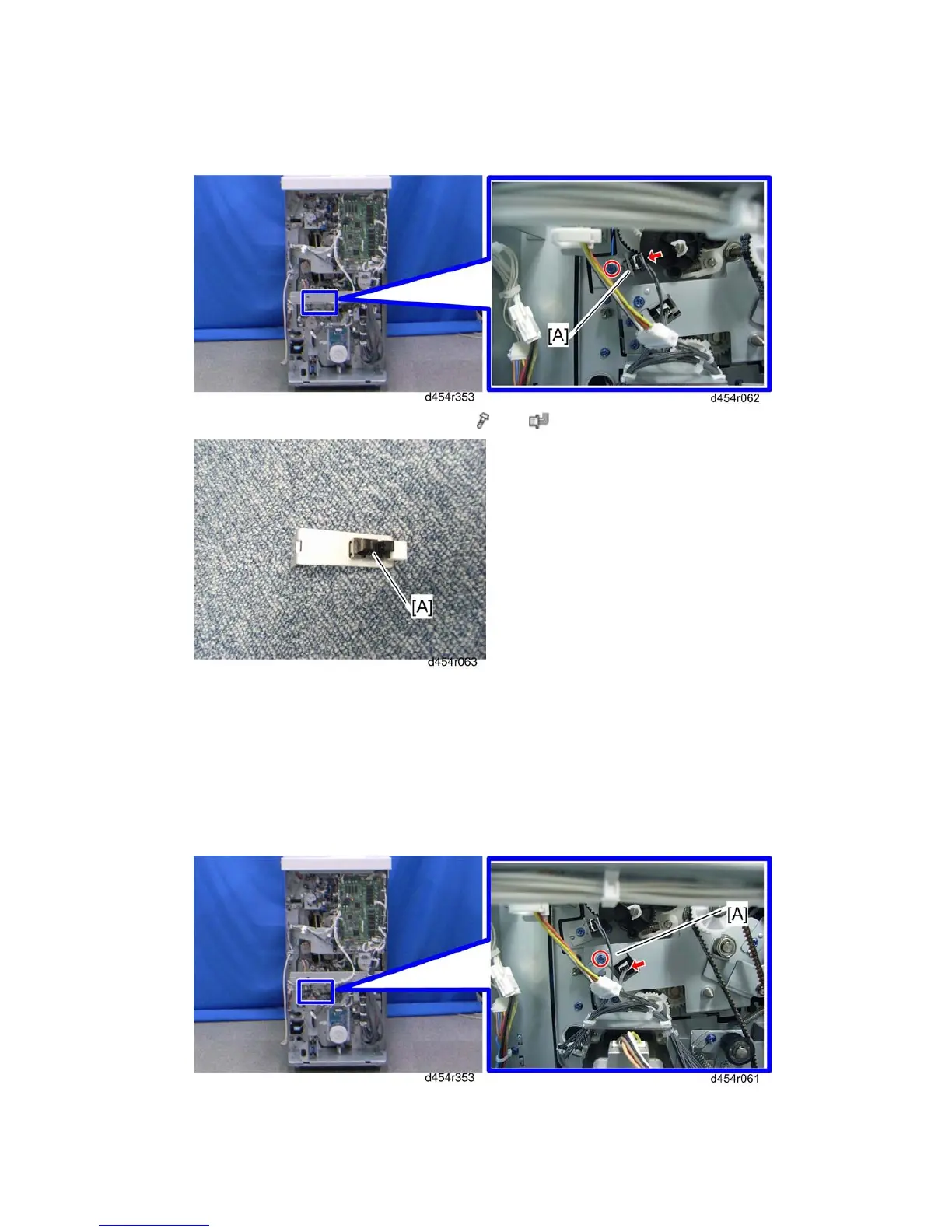

3. Registration roller HP sensor bracket [A] (
x 1, x 1)
4. Registration roller HP sensor [A] (hooks)
1.5.7 FOLD PLATE HP SENSOR
1. Rear upper cover ( p.4)
2. Rear lower cover ( p.4)
