Electrical Components: 3rd Stopper
SM 37 D454
Multi-Folding
Unit FD5000
D454

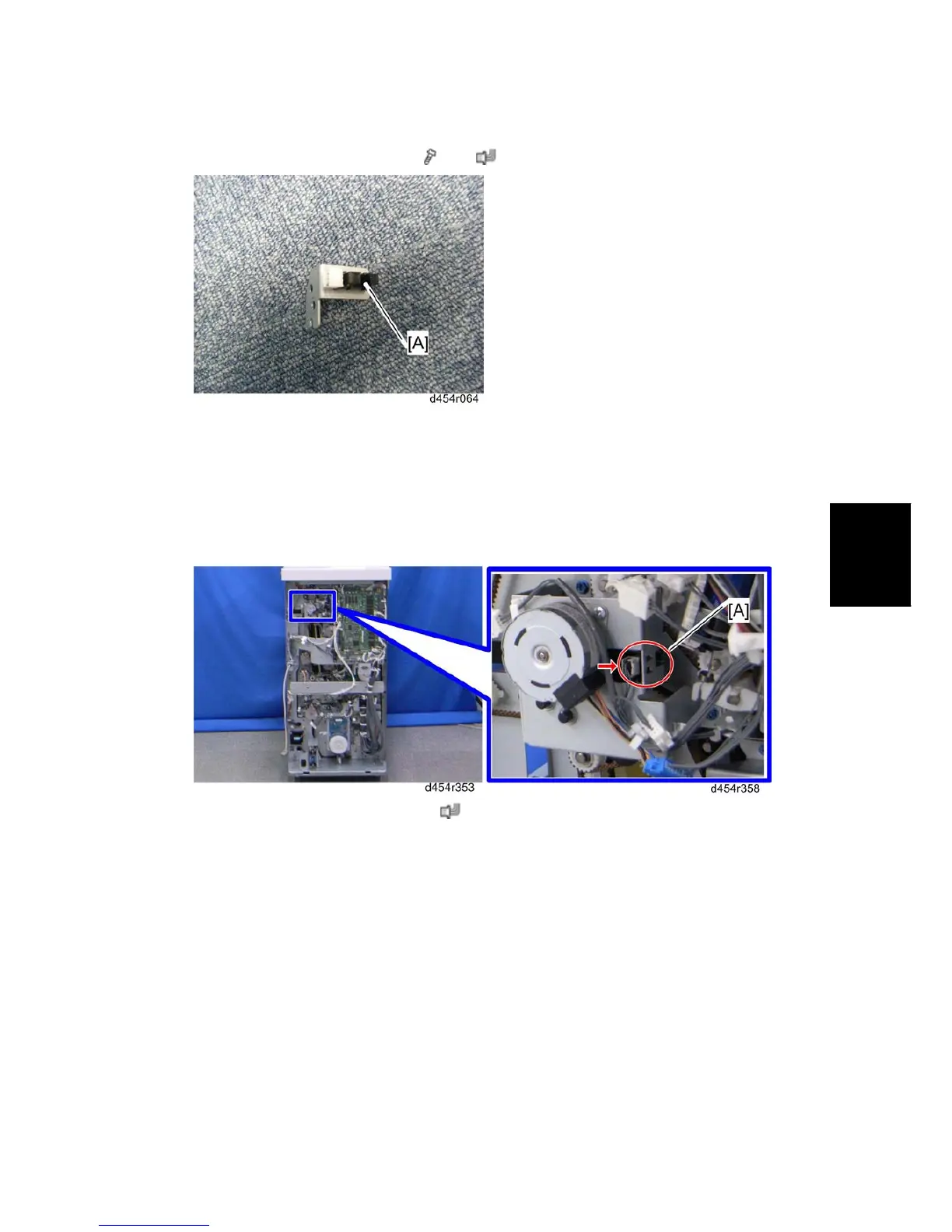

3. Fold plate HP sensor bracket [A] ( x 1, x 1)
4. Fold plate HP sensor [A] (hooks)
1.5.8 ENTRANCE JG (JUNCTION GATE) HP SENSOR
1. Rear upper cover ( p.4)
2. Entrance JG HP sensor [A] (hooks,
x 1)
1.5.9 TOP TRAY EXIT SENSOR
1. Top cover ( p.2)
