Replacement and Adjustment
D454 38 SM

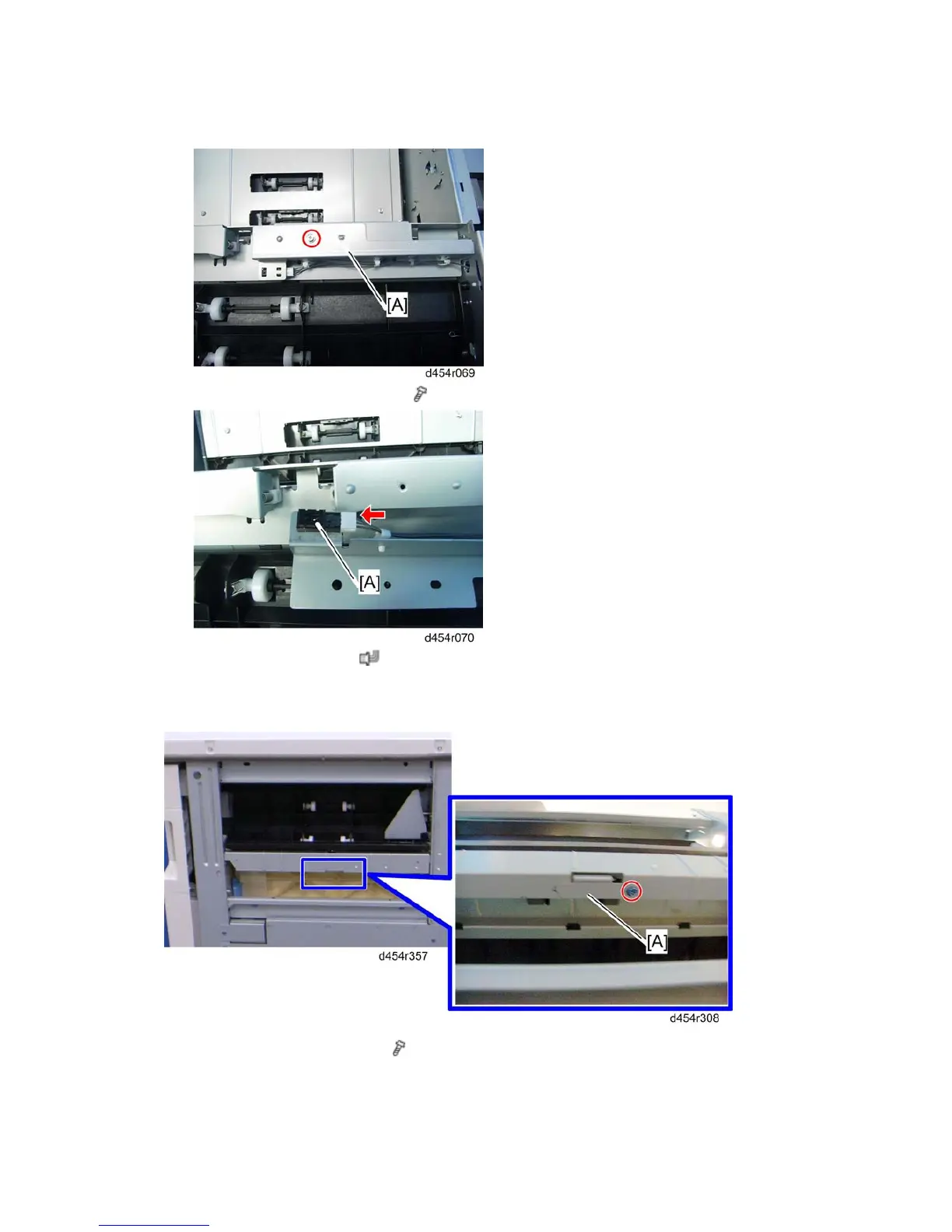

2. Top tray exit sensor bracket [A] (
x 1)
3. Top tray exit sensor [A] ( x 1)
1.5.10 ENTRANCE SENSOR
1. Entrance sensor bracket [A] ( x 1)
