Replacement and Adjustment
D454 42 SM

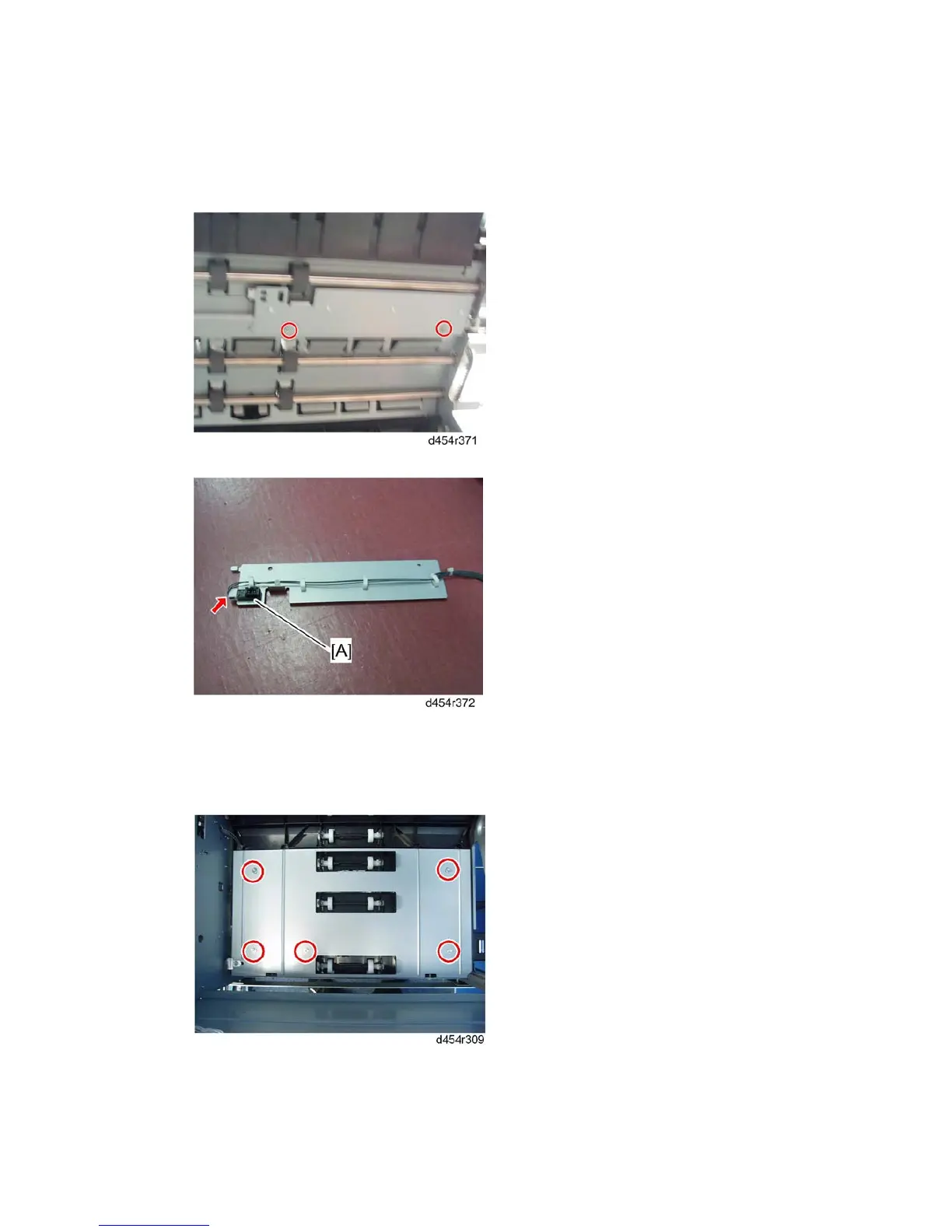

1.6.4 HORIZONTAL PATH PAPER SENSOR
1. Top tray ( p.5)
2. Remove the bracket ( x 2)
3. Horizontal path paper sensor [A] ( x 1)
1.6.5 HORIZONTAL PATH EXIT SENSOR
1. Top tray ( p.5)
2. Remove the bracket ( x 5)
To Next Page
