Replacement and Adjustment
D454 46 SM

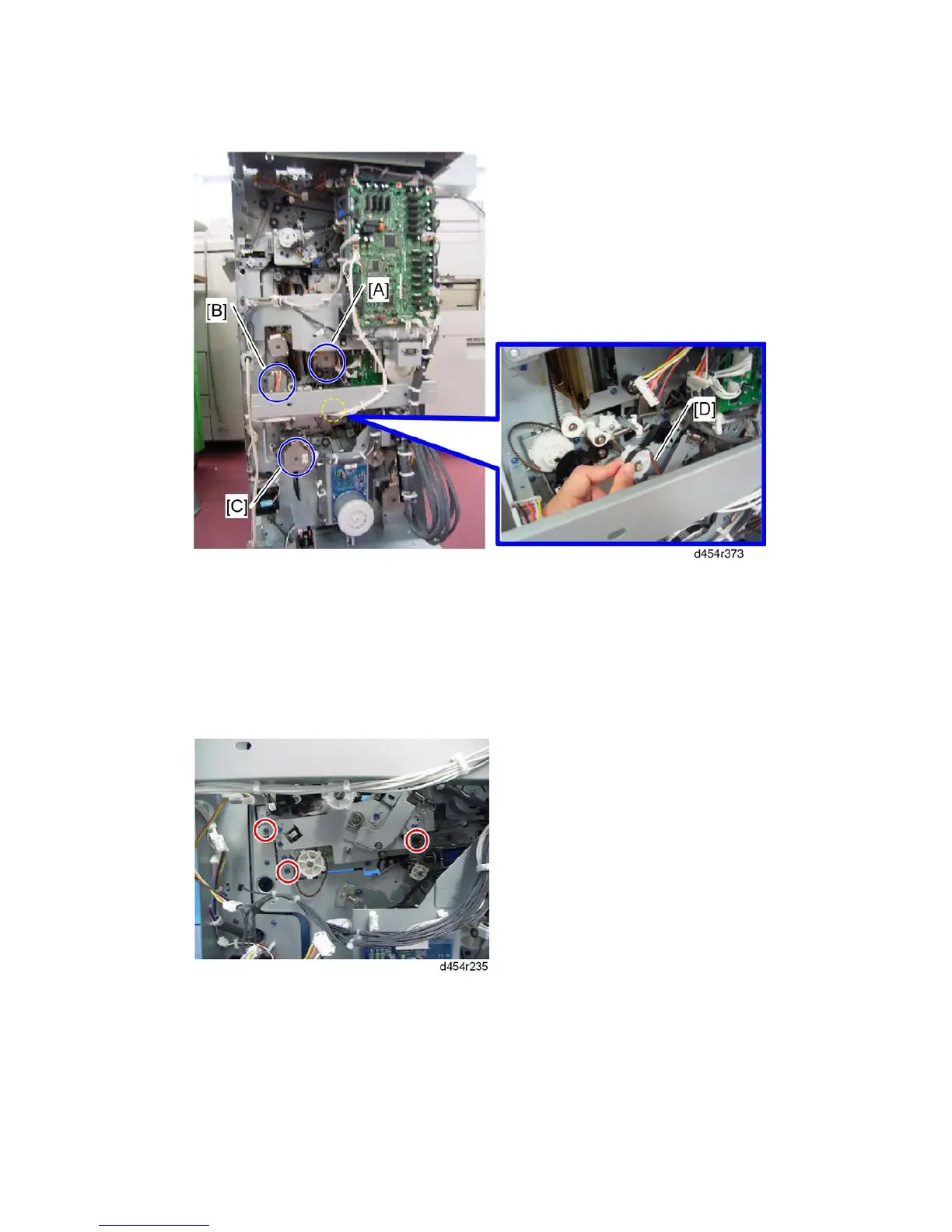

4. Registration roller transport motor bracket [A] ( p.13 "Registration Roller Transport
Motor")
5. Registration roller release motor bracket [B] ( p.12 "Registration Roller Release
Motor")
6. Fold plate motor bracket [C] ( p.15 "Fold Plate Motor")
7. Timing belt of the 1st plate motor [D]
8. Remove three screws on the rear side.
