Electrical Components: Main 1
SM 47 D454
Multi-Folding
Unit FD5000
D454

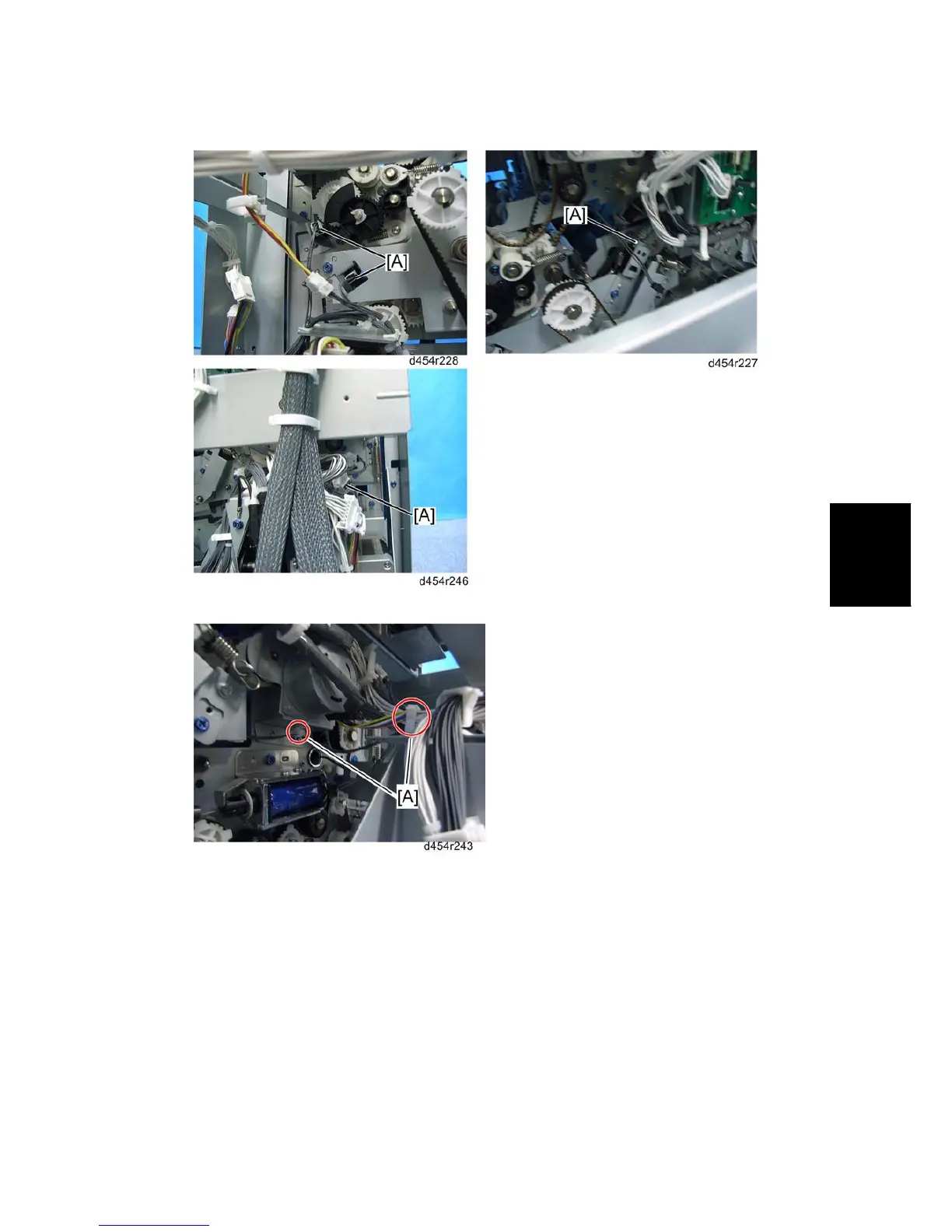

9. Disconnect four harnesses [A] on the rear side.
10. Release two clamps [A].
