Ricoh D065 - Page 1303

Replacement and Adjustment
D454 84 SM

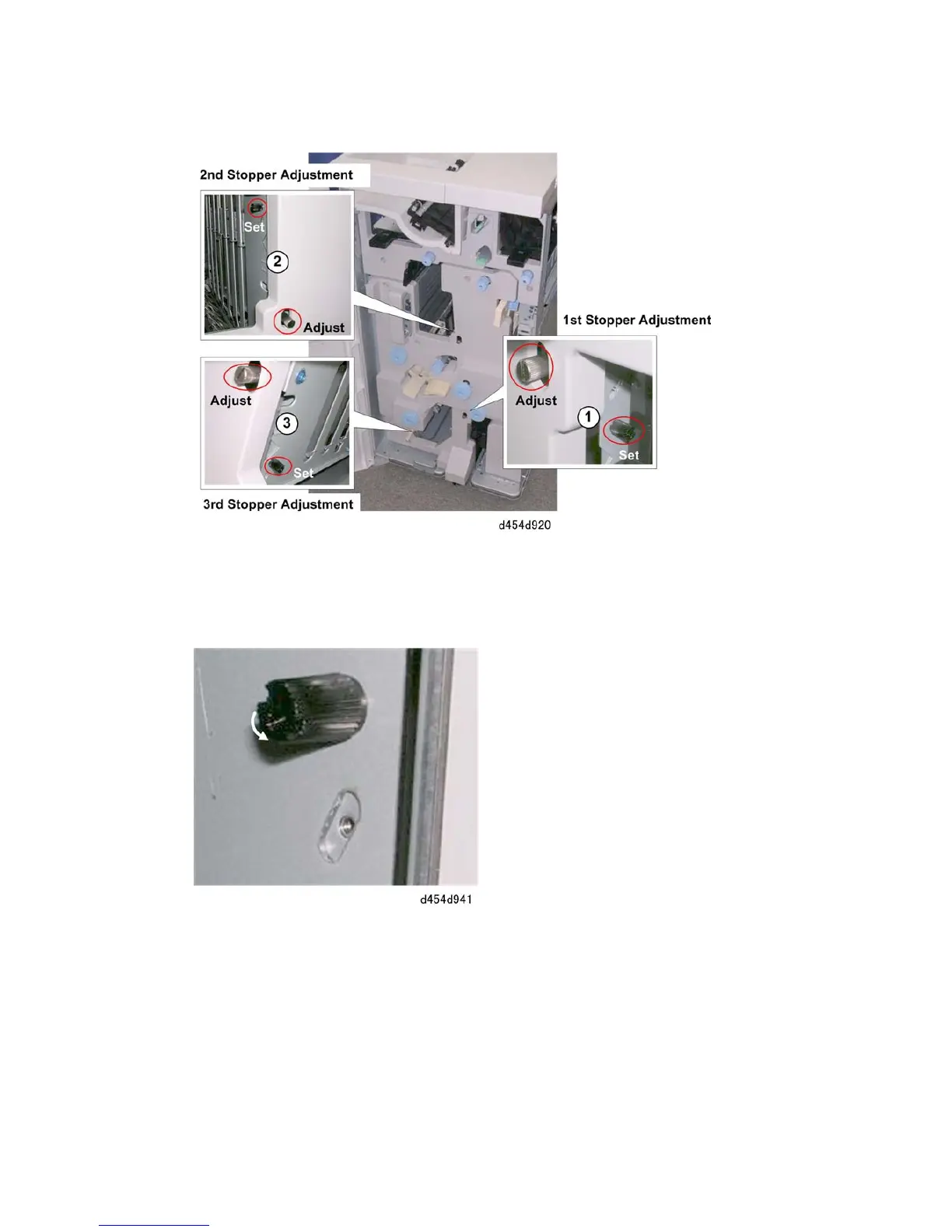

3. The illustration above shows the location for each stopper adjustment.
 Each stopper is equipped with two screws.
 The black plastic screw is the Set screw and the metal silver screw is the
Adjustment screw.
4. Remove the Set screw.
