Ricoh D065 - Page 133

Mail Box (B762)
SM 2-85 D062/D063/D065/D066
Installation
2. If the Cover Interposer Tray B704 is installed on the D373/D374, remove it.
 The cover interposer tray and mailbox cannot be installed on the finisher at
the same time.

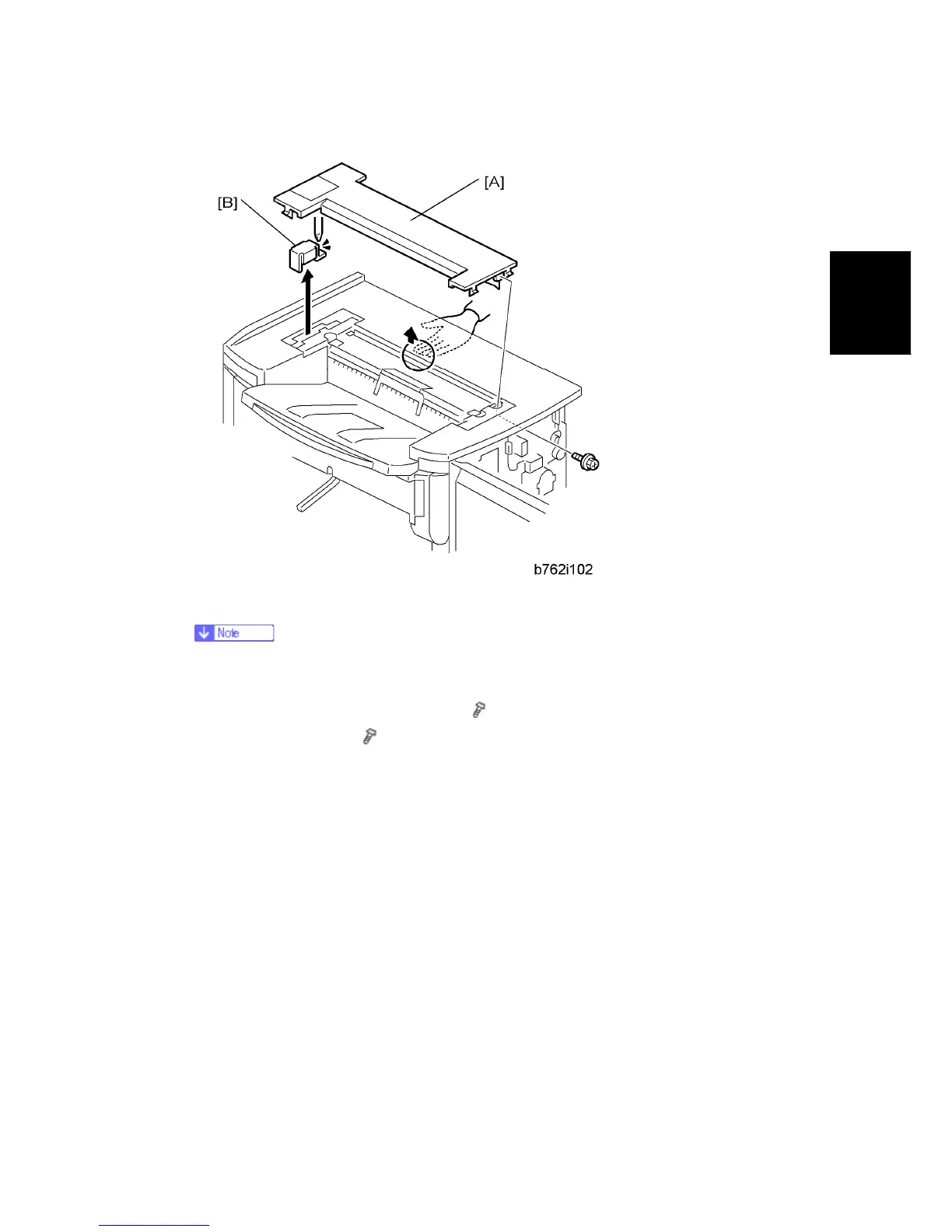

3. Remove the top cover [A] of the finisher (
x 1).
4. Remove the bracket [B] (
x 1).
