Fusing Unit
D062/D063/D065/D066 4-64 SM

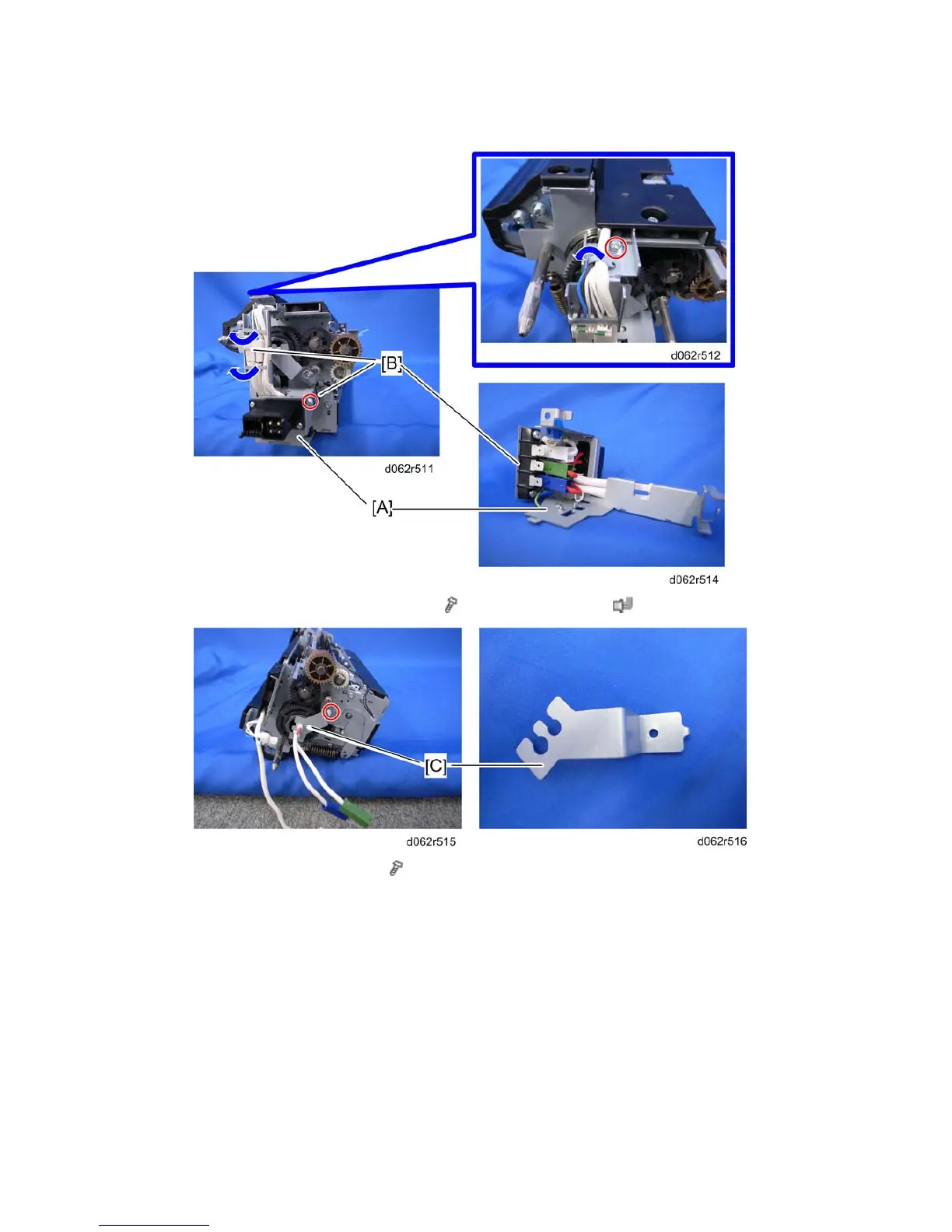

2. Rear terminal connector bracket [A] ( x 2, metal clamp x 3, [B] x 6)
3. Rear fusing lamp holder [C] (
x 1)
