Fusing Unit
SM 4-65 D062/D063/D065/D066
Replacement
and
Adjustment

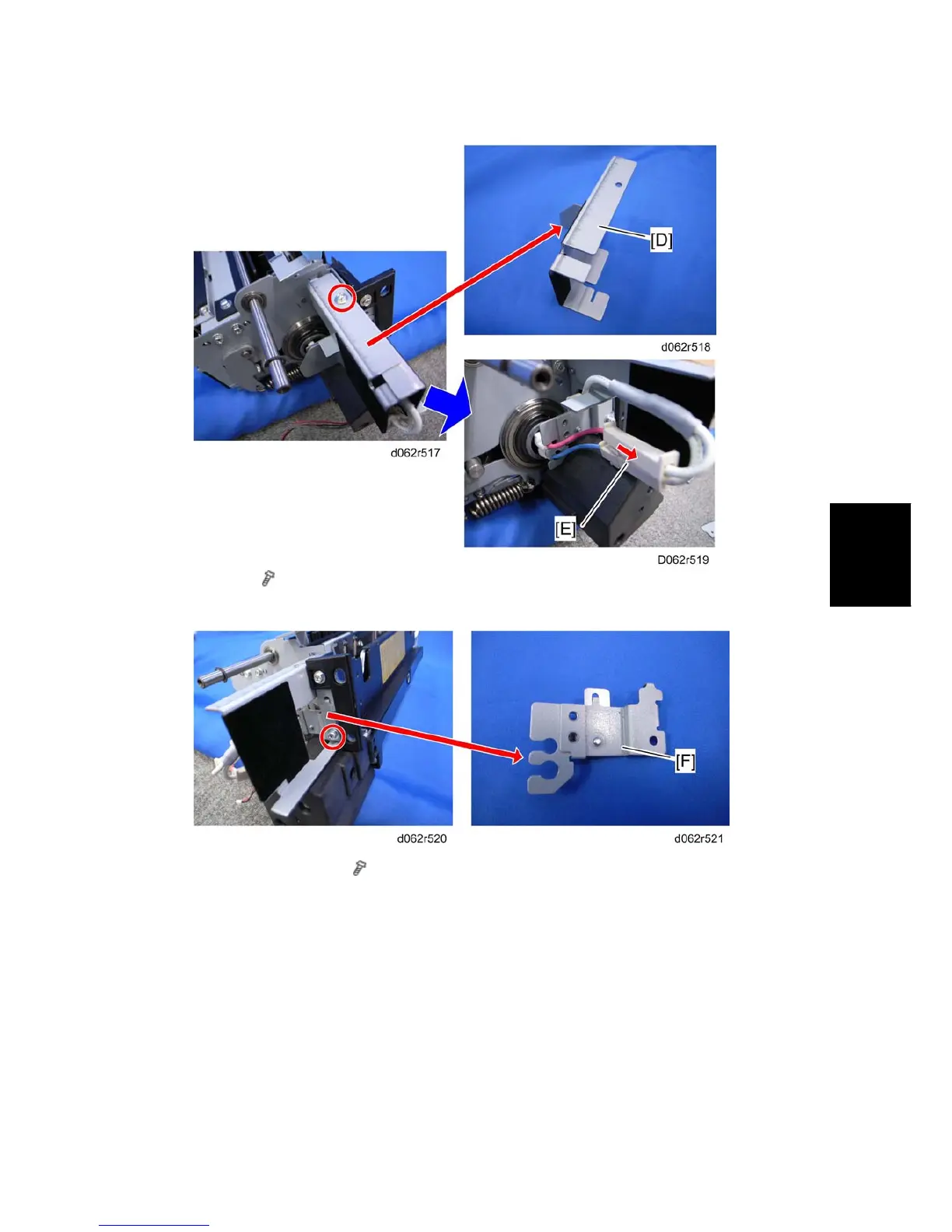

4. Plate [D] (
x 1)
5. Disconnect two harnesses [E]
6. Front fusing holder [F] ( x 1)
