Main Machine
SM 2-9 D062/D063/D065/D066
Installation

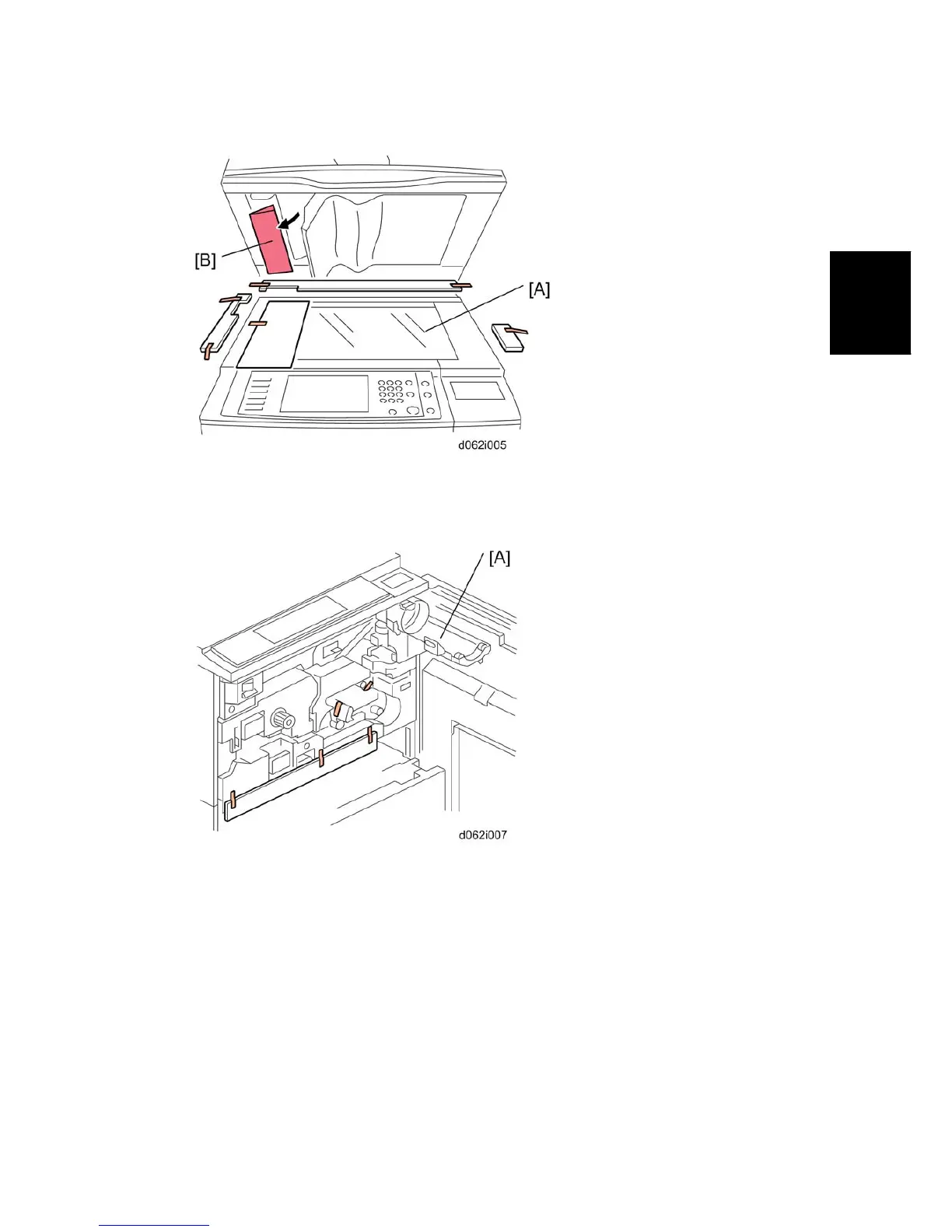

6. Raise the ADF and remove all the tape and shipping retainers around the exposure
glass [A] and operation panel.
7. Remove the shipping retaining sheet [B] under the white pad.
8. Open the front door, open the toner bottle holder [A], then remove all tape and shipping
retainers.
To Next Page
