Main Machine
D062/D063/D065/D066 2-10 SM

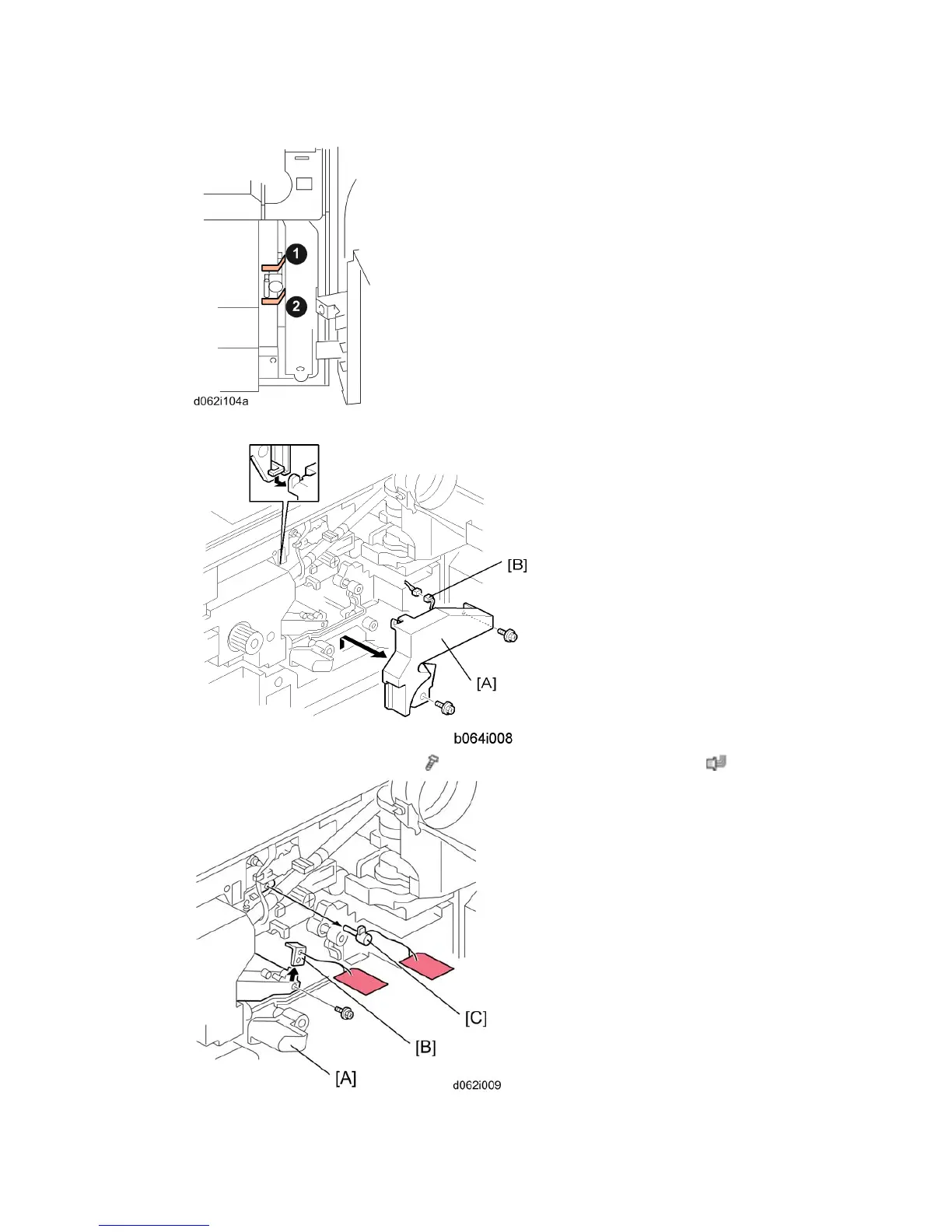

9. Open the right door and remove the tapes from the vertical transport plate.
10. Remove the PCU inner cover [A] (
x 2) and disconnect the fan motor [B] ( x 1).
