B245/B276/B277/B268/B269 Service Manual 18-Jan-06
8

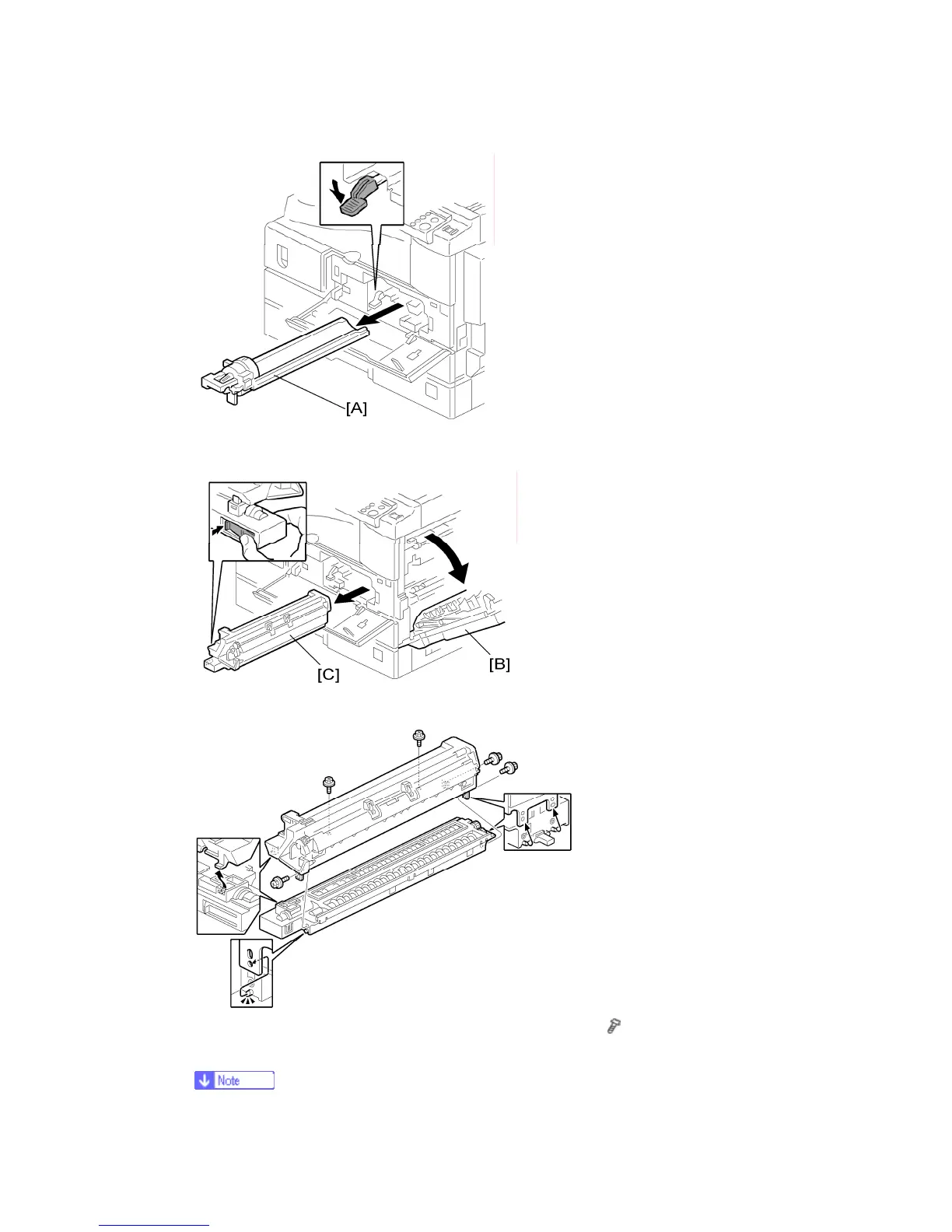

2. Open the front door and remove the toner bottle holder [A]
3. Open the right door [B], and remove the PCU (photoconductor unit) [C].
4. Separate the PCU into the upper part and the lower part (
x 5).
5. Put a sheet of paper on a level surface and place the upper part on it.
To Next Page
