and all the pieces of cardboard.
After removing the tape that secures the peripheral components and cardboard
to the paper tray, make sure that there is no tape and/or tape reside remaining
on the tray.

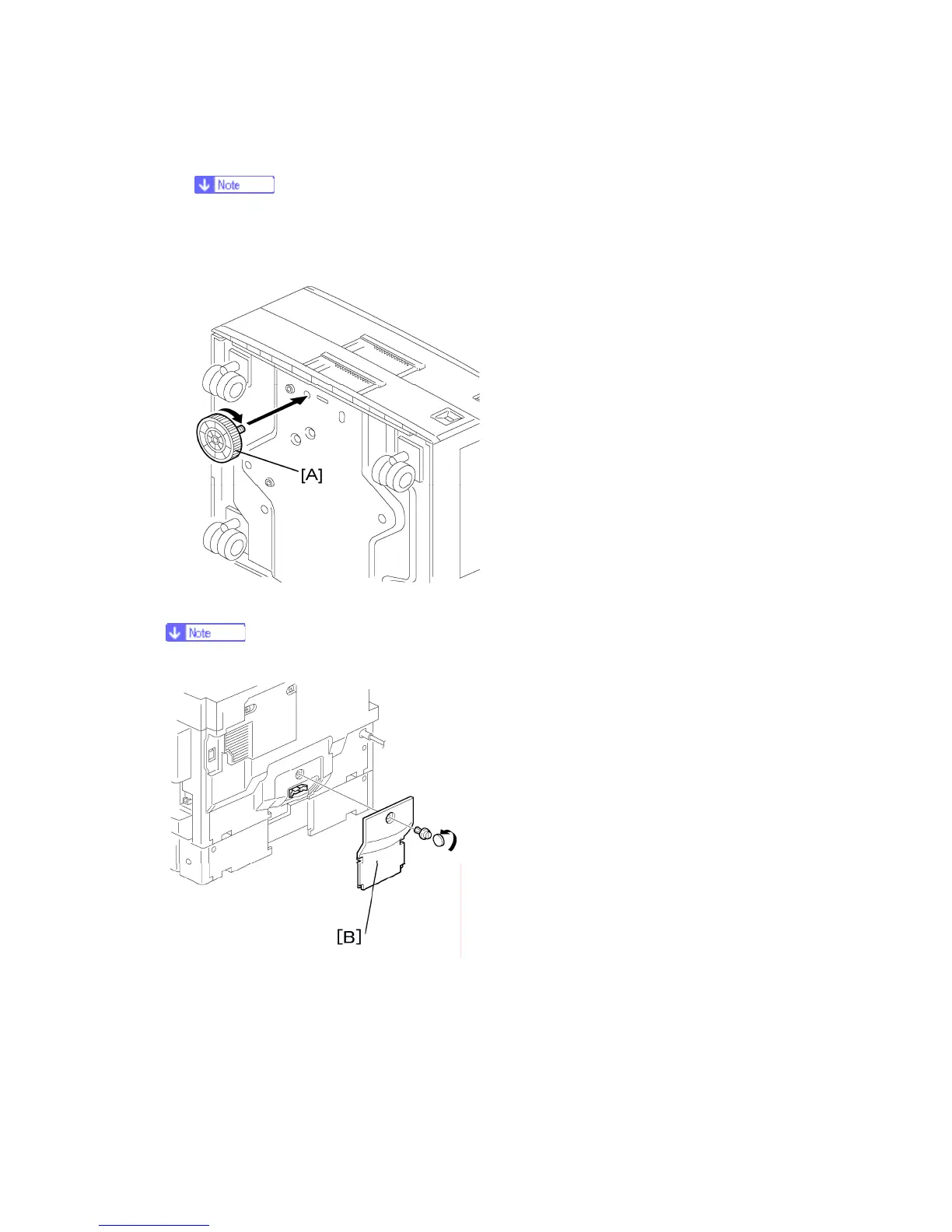

2. Attach the adjuster [A] to the base plate as shown.
This step is not necessary if a cabinet is installed.
3. Remove the cover [B] (1 rivet).
