Ricoh K-C3

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
22

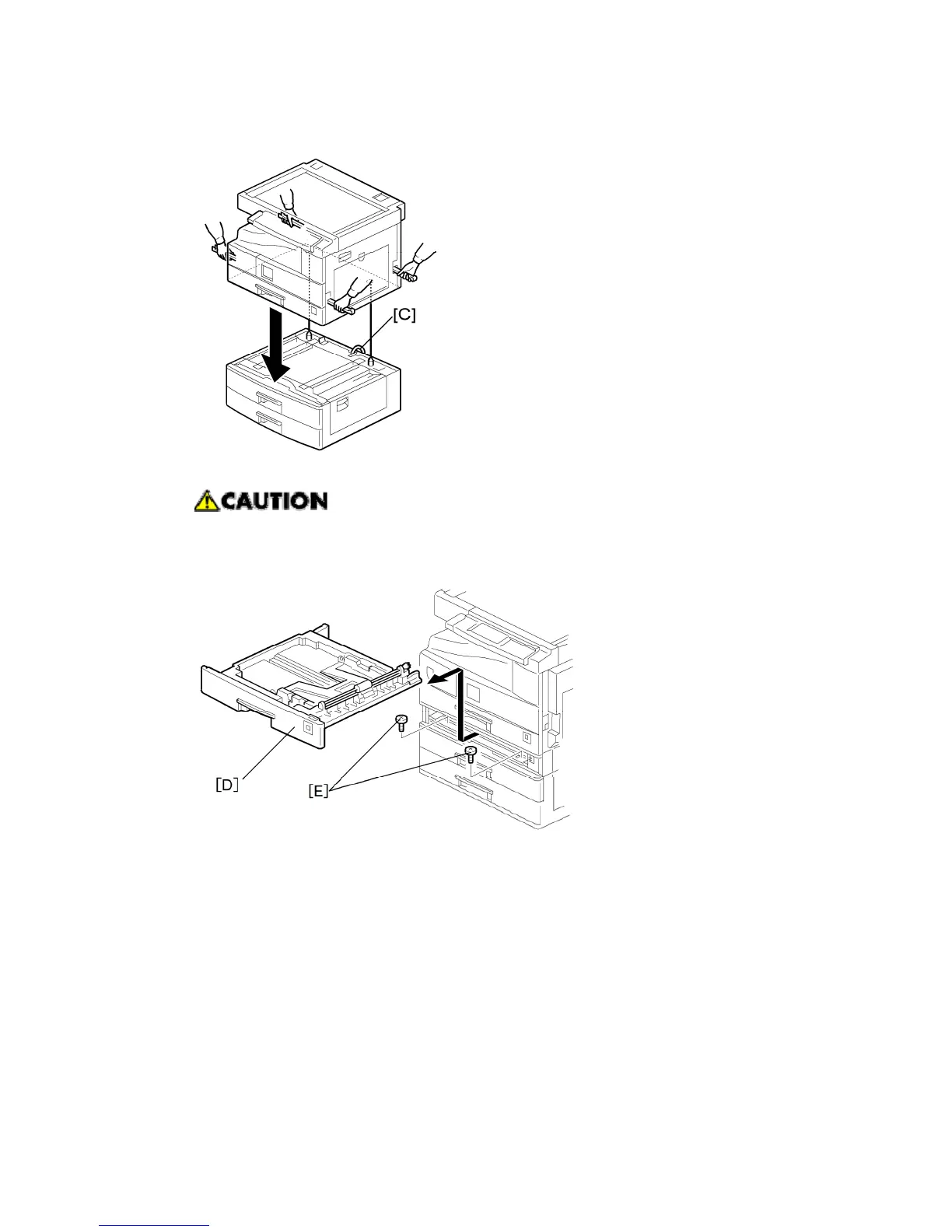

4. Set the copier on the paper tray unit.
 Before placing the copier on the paper tray unit, make sure that the harness [C]
is safe. The paper tray unit does not function properly if the harness is damaged.
5. One-tray copier model (B268/B276): Remove the 1st tray cassette [D].
Two-tray copier models (B269/B277): Remove the 2nd tray cassette [D].
6. Install the two screws [E].
7. Reinstall the tray cassette.
