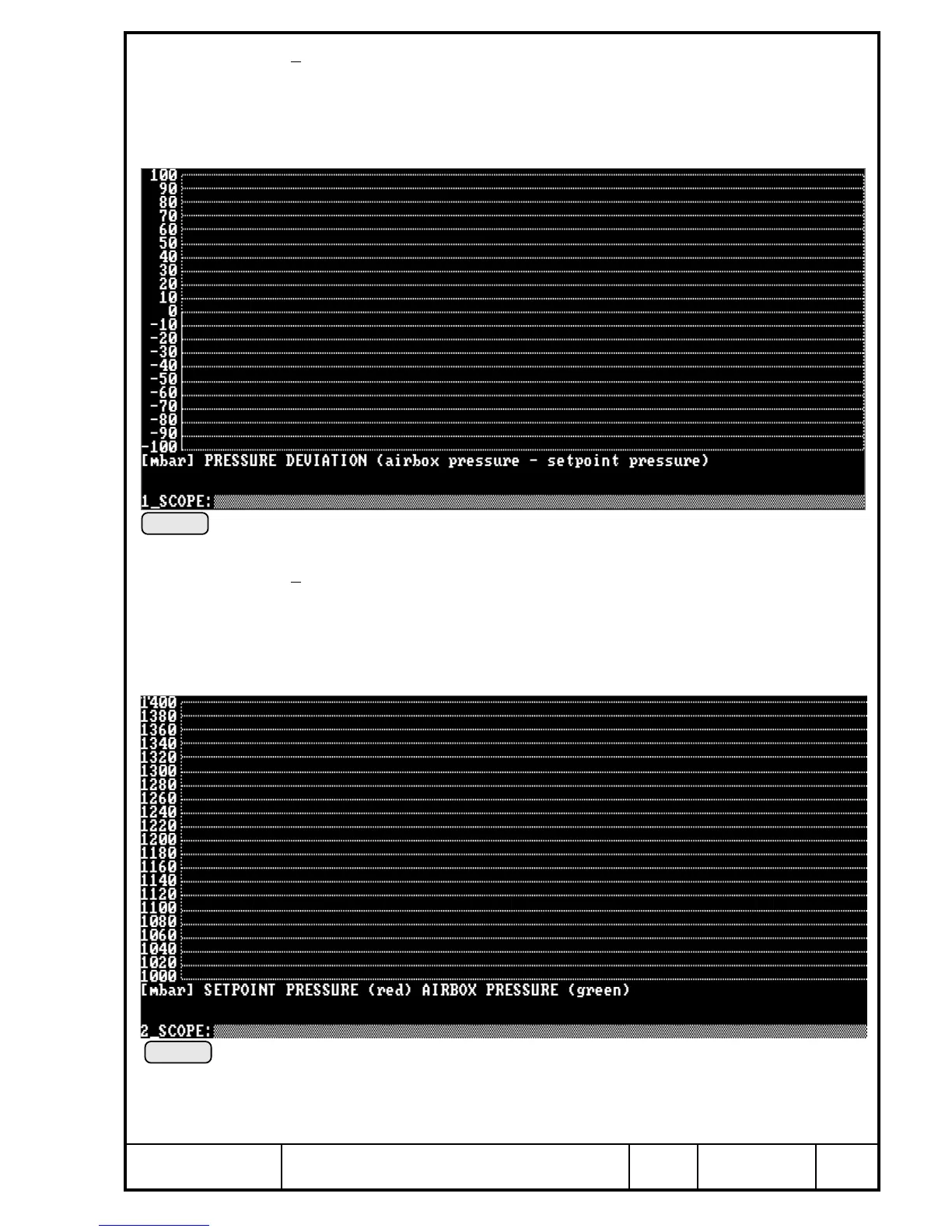

1_SCOPE: For on-line display of the control action with regard to
pressure deviation (airbox pressure to target pressure) in
the range of ±100 hPa (mPa).
The program is for graphic evaluation of the parameters I
and O in the monitor program.
2_SCOPE: For on-line display of the control action between target
pressure and effective airbox pressure in the range of 1000
to 1400 hPa (mPa).
The program is for graphic evaluation of the parameters I
and O in the monitor program.
00195
00194
Pic. 165
Pic. 164
