Commissioning and Diagnostics
6-54
ET 200S Distributed I/O System
EWA-4NEB 780602402-12
Hardware interrupt of digital input modules
Byte x+4
76 054321
Rising edge on channel 0
Rising edge on channel 1
Rising edge on channel 2
Rising edge on channel 3
Byte x+5, x+6 and x+7 always 00
H

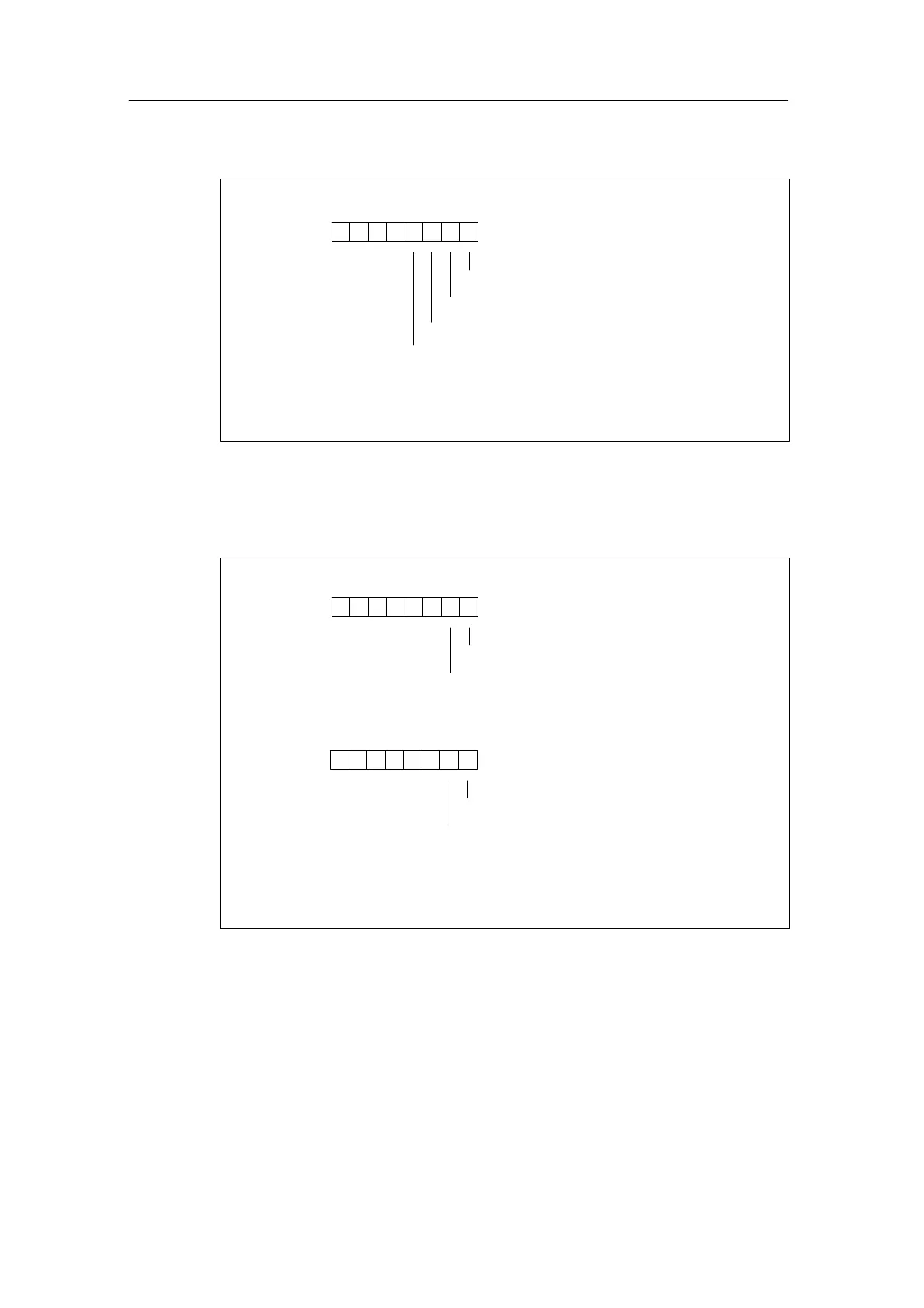

Figure 6-32 Structure as of byte x+4 for hardware interrupt (digital input)
Hardware interrupt of analog input modules
Byte x+4
76 054321
Lower limit value exceeded: Channel 0
Byte x+6 and x+7 always 00
H
Upper limit value exceeded: Channel 1
Byte x+5
76 054321
Lower limit value not met: Channel 0
Upper limit value exceeded: Channel 1
Figure 6-33 Structure as of byte x+4 and byte x+5 for hardware interrupt (analog input)
