4 IQ-SENSE
13-15
ET 200S Distributed I/O System
EWA-4NEB 780602402-12
13.3 Terminal assignment
The following table shows the terminal assignment of the 4 IQ-SENSE for the
various terminal modules:

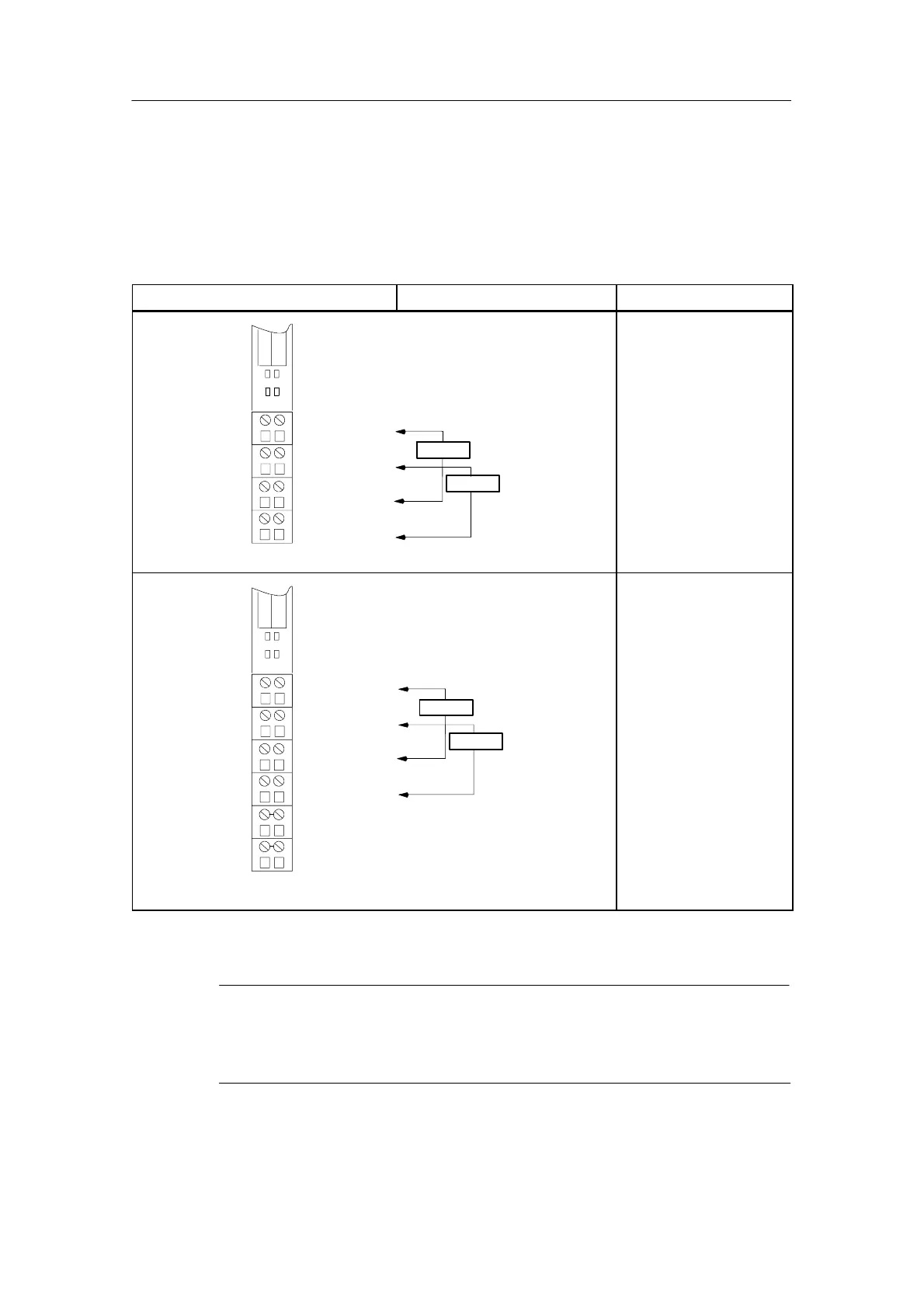

Table 13-5 Terminal assignment of the 4 IQ-SENSE
View
Terminal assignment Remarks
2
3
4
6
7
8
1
5
TM-E15S24-01 and 4 IQ-SENSE
CH1CH0
M
0+
CH2 CH3
M
2+
M
0--
M
2--
M
1+
M
3+
M
1--
M
3--
Sensor
Sensor
Channel 0: Terminals 1
and 3
Channel 1: Terminals 5
and 7
Channel 2: Terminals 2
and 4
Channel 3: Terminals 6
and 8
M
+
: Input signal ”+”
M
--
: Input signal ”--”
2
3
4
6
7
8
1
5
TM-E15S26-A1 and 4 IQ-SENSE
CH1
CH0
CH2
CH3
A
4
A
3
A
8
A
7
AUX1
AUX1
M
0+
M
2+
M
0--
M
2--
M
1+
M
3+
M
1--
M
3--
AUX1
AUX1
Sensor
Sensor
Channel 0: Terminals 1
and 3
Channel 1: Terminals 5
and 7
Channel 2: Terminals 2
and 4
Channel 3: Terminals 6
and 8
M
+
: Input signal ”+”
M
--
: Input signal ”--”
Note
•
The connections to the sensors cannot be reversed.
•
The minimum wiring cross secton for the sensors is 0.25 mm
2
•
Connecting cables for the sensors can be found in Chapter A.
