Siemens SIMATIC ET 200S - Components for the Example on PROFIBUS DP

Brief Instructions on Commissioning ET 200S
2-2
ET 200S Distributed I/O System
EWA-4NEB 780602402-12

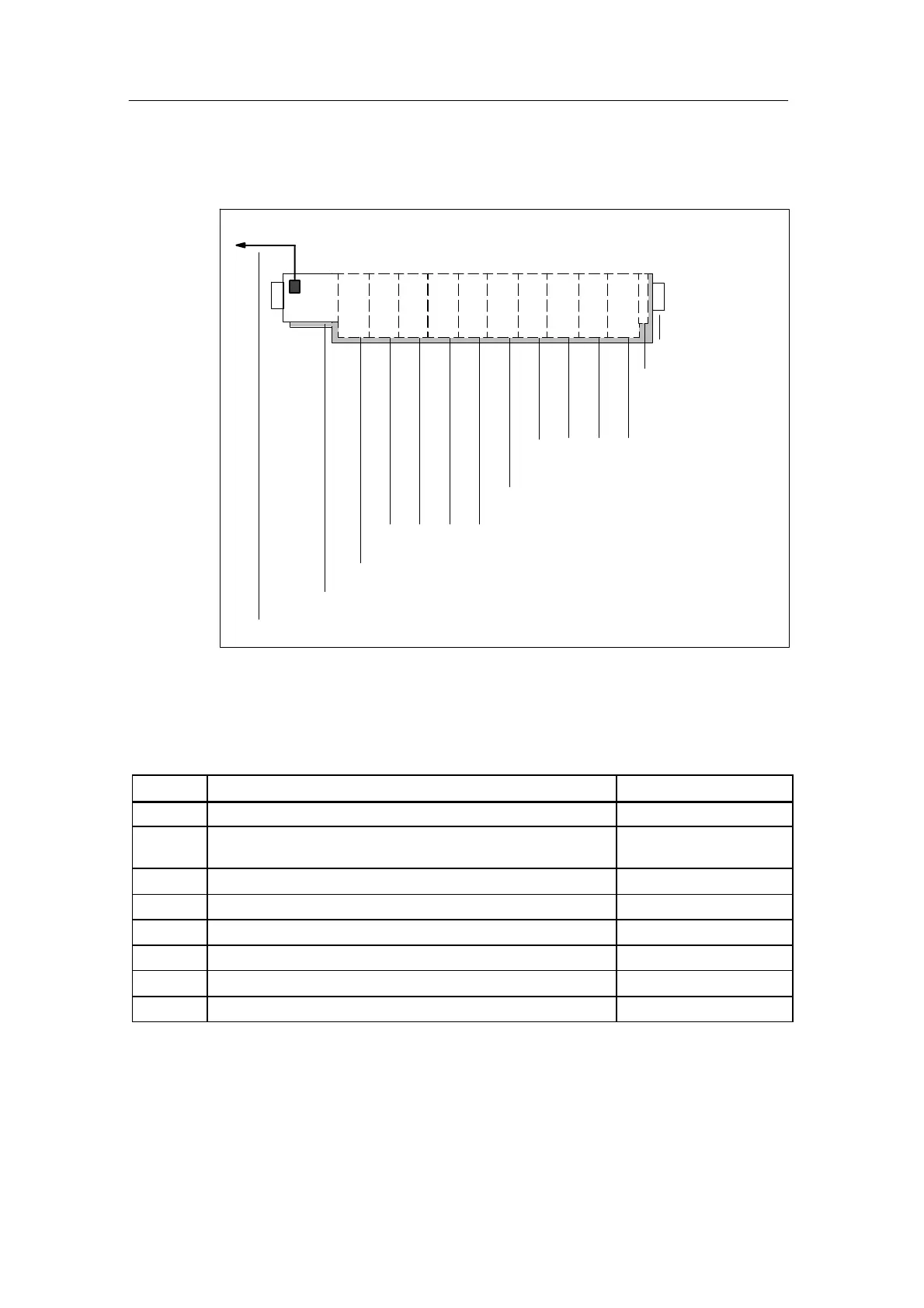

The following figure illustrates the ET 200S components you require for the
example on PROFIBUS DP:
DI DI
IM151-1
PM
DI DI DO DO
PM
DO DO
Rail
Terminating module
4 x TM-E15N24-A1 terminal module and
2DO 24 VDC/0.5 A High Feature
electronic module
TM-P15N23-A1 terminal module and
PM-E 24 VDC power module
4 x TM-E15N24-A1 terminal module and 2DI 24 VDC
High Feature electronic module
TM-P15N23-A1 terminal module and PM-E 24 VDC power module
IM151-1 STANDARD interface module
PROFIBUS bus connector
123 4 5 6 78 910 Slot
Figure 2-1 Components for the e xample on PROFIBUS DP
Order numbers for the example on PROFIBUS DP
Quantity Order information Order number
1 ¢ Standard rail 35 mm (e.g. 483 mm length) 6ES5 710-8MA11
1 ¢ IM151-1 STANDARD interface module and terminating module,
1 unit
6ES7 151-1AA03-0AB0
2 ¢ TM-P15N23-A1 Fast Connect terminal module, 1 unit 6ES7 193-4CC70-0AA0
2 ¢ TM-E15N24-A1 Fast Connect terminal module, 5 units 6ES7 193-4CA70-0AA0
2 ¢ PM-E 24 VDC, 1 unit 6ES7 138-4CA00-0AA0
1 ¢ 2DI 24 VDC High Feature, 5 units 6ES7 131-4BB00-0AB0
1 ¢ 2DO 24 VDC/0.5 A High Feature, 5 units 6ES7 132-4BB00-0AB0
1 ¢ Bus connector 6ES7 972-0BA10-0XA0
