Siemens SIMATIC ET 200S - Smoothing with 2 AI U High Speed, 2 AI I 2 WIRE High Speed 2 AI I 4 WIRE High Speed

Analog Electronic Modules
12-40
ET 200S Distributed I/O System
EWA-4NEB 780602402-12
• Smoothing with 4AI I 2WIRE Standard
0.5
1
0
0.63
25
50 75
Module cycles
None: k=1
weak: k=4 medium: k=16 strong: k=32
100 125 150
Step response
• Smoothing with 2AI U High Speed, 2AI I 2WIRE High Speed, 2AI I 4WIRE High
Speed
0.5
1
0
0.63
100 200 300
Module cycles
400 500 600
None: k=1
weak: k=64 medium: k=128 strong: k=512
Step response

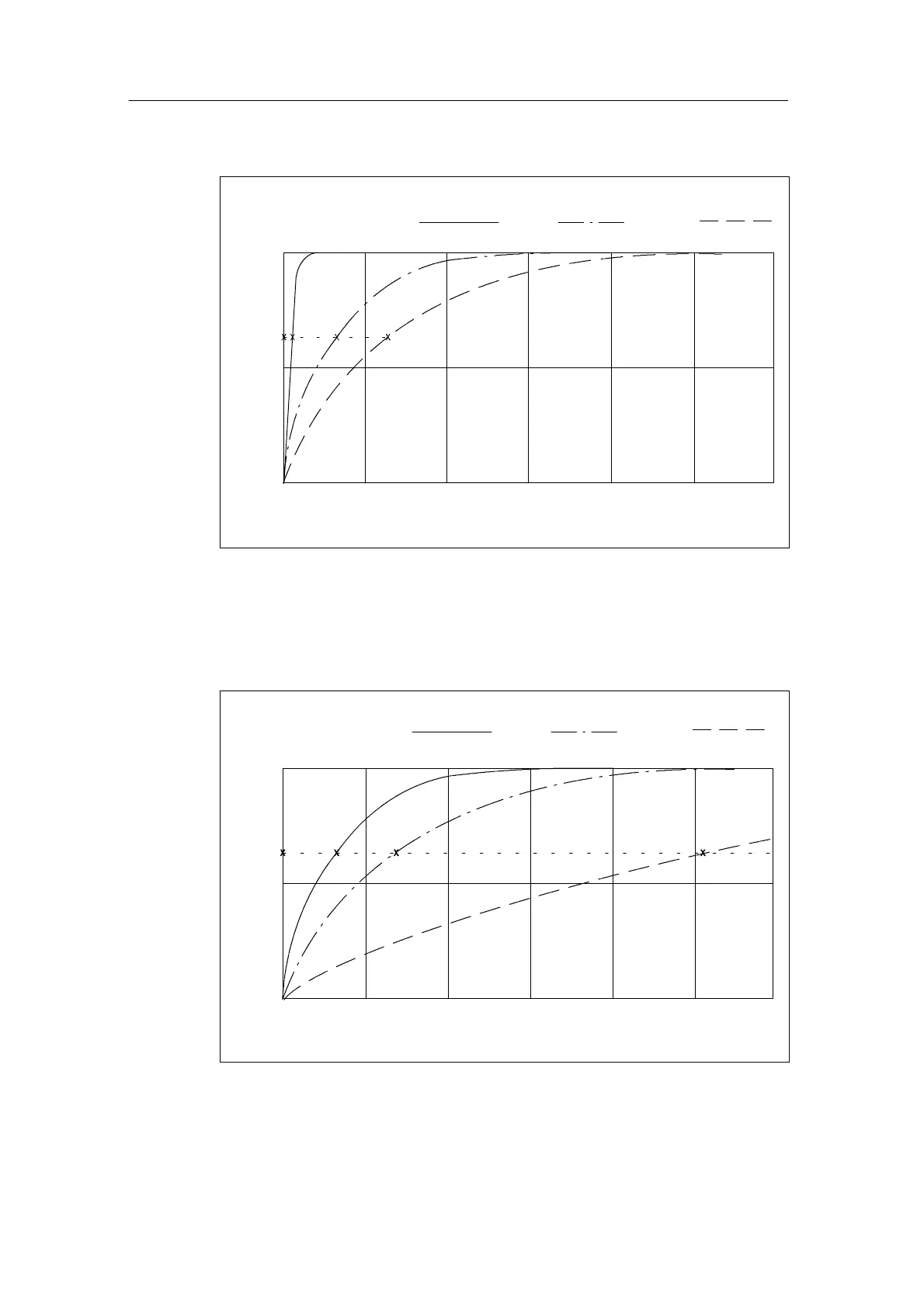

Figure 12-6 Smoothing with 2AI U High Speed, 2AI I 2WIRE High Speed, 2AI I 4WIRE
High Speed
