Siemens SIMATIC ET 200S - Terminal Assignment of the 4 AI I 2 WIRE Standard

Analog Electronic Modules
12-58
ET 200S Distributed I/O System
EWA-4NEB 780602402-12
12.9 4AI I 2WIRE Standard analog electronic module
(6ES7 134-4GD00-0AB0)
Order number
6ES7 134-4GD00-0AB0
Properties
• 4 inputs for current measuring
• Input range:
4to20mA,resolution13bits
Terminal assignment
The following table shows the terminal assignment of the 4AI I 2WIRE Standard for
the various terminal modules:

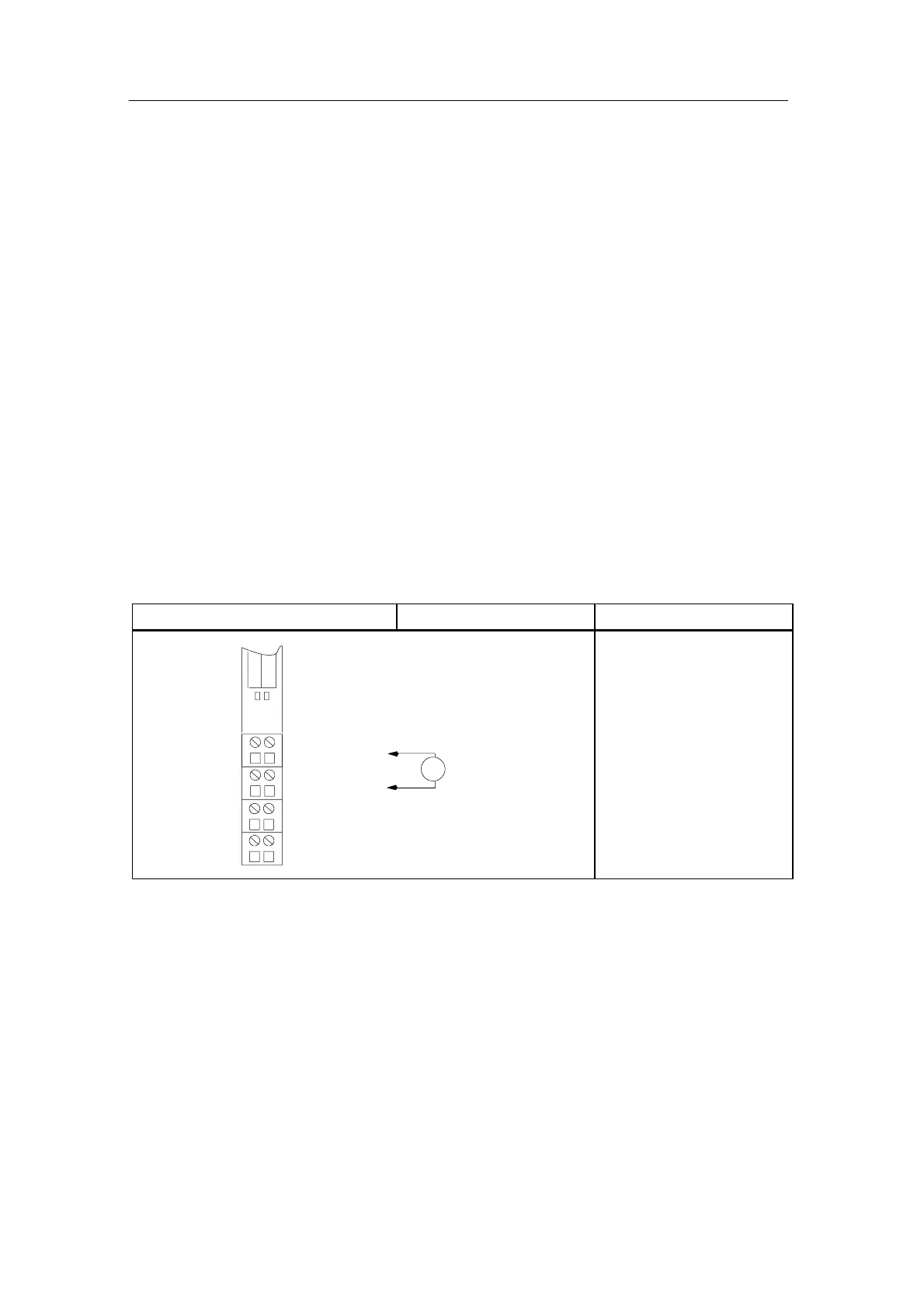

Table 12-40 Terminal assignment of the 4AI I 2WIRE Standard
View
Terminal assignment Remarks
M
1--
M
0--
2
3
4
6
7
8
1
5
M
1+
M
0+
M
3+
M
2+
TM-E15S24-01 and 4AI I 2WIRE Standard
CH1CH0
mA
M
3--
M
2--
CH3CH2
Channel 0: Terminals 1 and 2
Channel 1: Terminals 5 and 6
Channel 2: Terminals 3 and 4
Channel 3: Terminals 7 and 8
M+: Input signal ”+”
M--: Input signal ” --”
The 2-wire transducers are
powered over the
measurement leads.
