Siemens SIMATIC ET 200S - With an Electronic Module Inserted

Dimension Drawings
B-4
ET 200S Distributed I/O System
EWA-4NEB 780602402-12
90.5
67
Rail
support
15
66.5
3
157
65.5
30
66.5
3
67
132
Rail
support

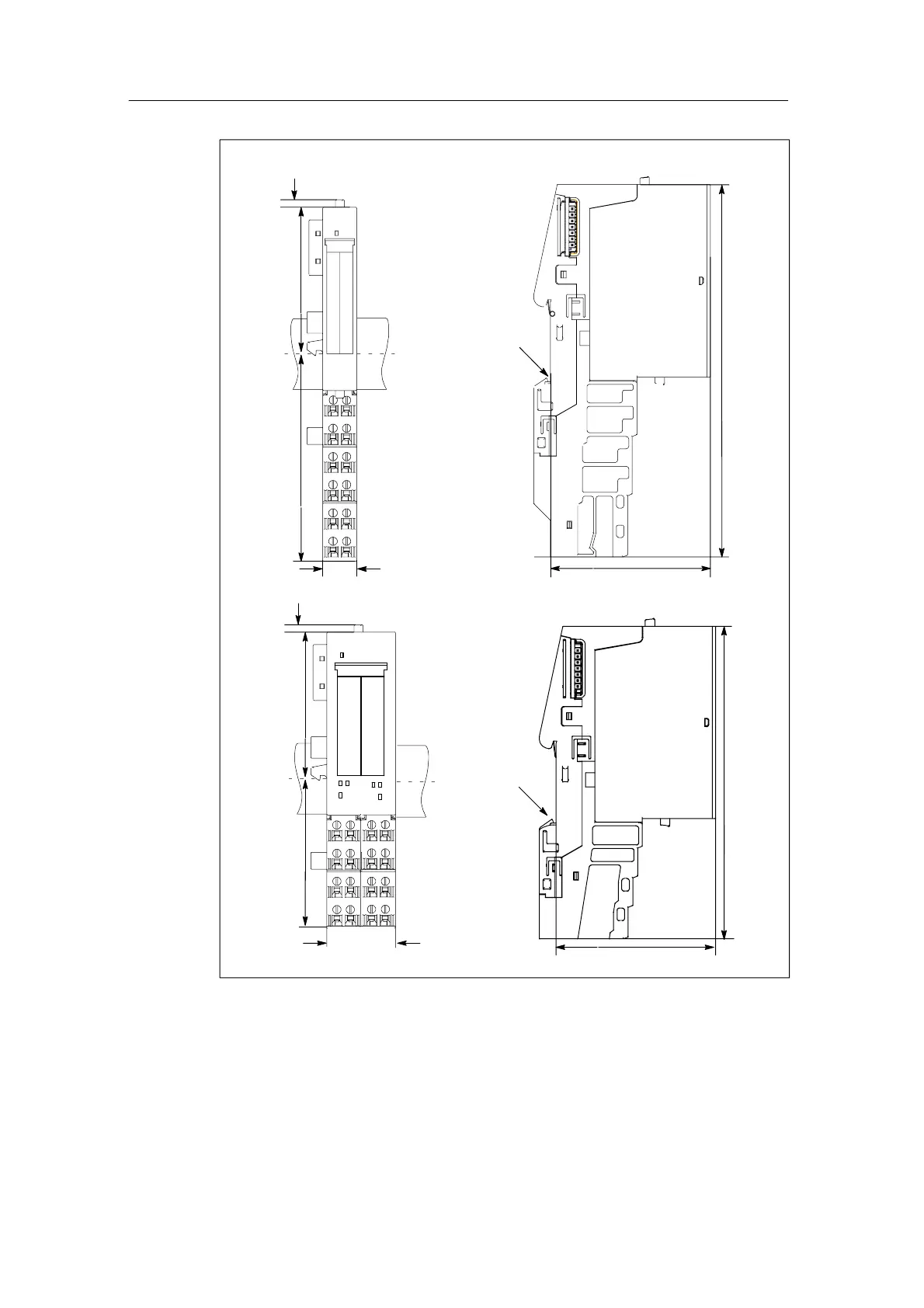

Figure B-5 Dimension drawing for terminal modules (screw-type/spring terminals) with an
electronic module inserted
