Analog Electronic Modules
12-111
ET 200S Distributed I/O System
EWA-4NEB 780602402-12
12.21 2AO I High Feature analog electronic module
(6ES7 135-4MB01-0AB0)
Order number
6ES7 135-4MB01-0AB0
Properties
• 2 current outputs
• Output range:
--
¦
20 mA, resolution 15 bits + sign
-- 4to20mA,resolution15bits
• Isolated for load voltage L+
• Supports clock synchronized mode
-- Minimum possible time for the clock-synchronized DP cycle (T
DPmin
):
3.75 ms
-- Minimum possible conversion time of output modules: (T
WAmin
): 1.5 ms
Terminal assignment
The following table shows the terminal assignment of the 2AO I High Feature for
the various terminal modules.

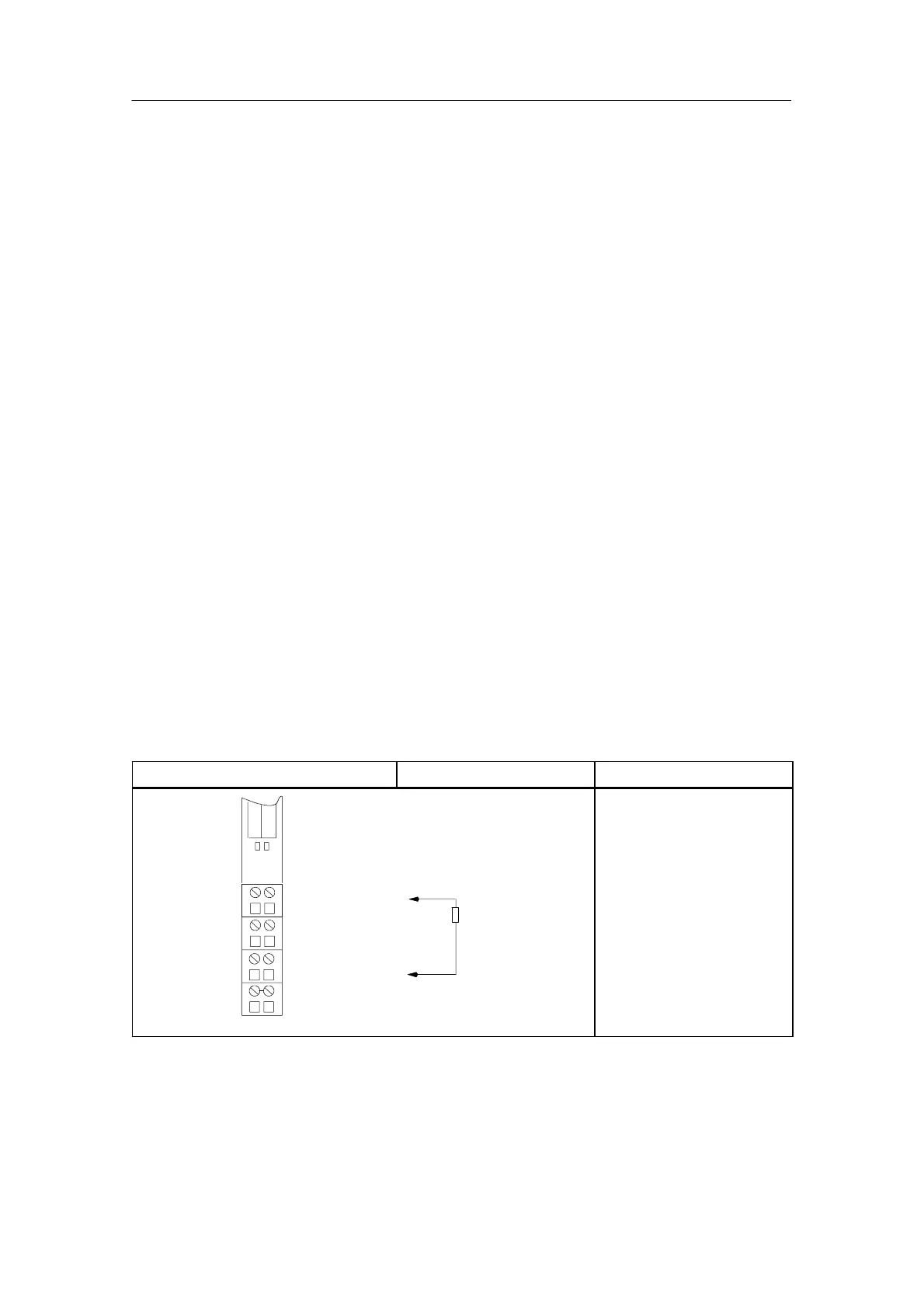

Table 12-52 Terminal assignment of the 2AO I High Feature
View
Terminal assignment Remarks
AUX1 (e.g. PE)
2
3
4
6
7
8
1
5
QI
1
QI
0
AUX1 (e.g. PE)
M
ana
M
ana
TM-E15S24-A1 and 2AO I High Feature
CH1CH0
n. c.n. c.
AA
Channel 0: Terminals 1 to A4
Channel 1: Terminals 5 to A8
QI: analog output current
M
ana
: Module ground
Terminals 2 and 6 can be
used for connection of cables
that are not required up to
30 VDC.
