3.4.5 General 5.1 Surround Channel View
Pressing VIEW: CHANNEL brings up an overview of the channel selected with
the LINK / SEL key, covering the whole Vistonics TFT. All available parame-
ters are shown in the rotary section, except for dynamics, EQ, and panning.
Only visible parameters are available for adjustment.

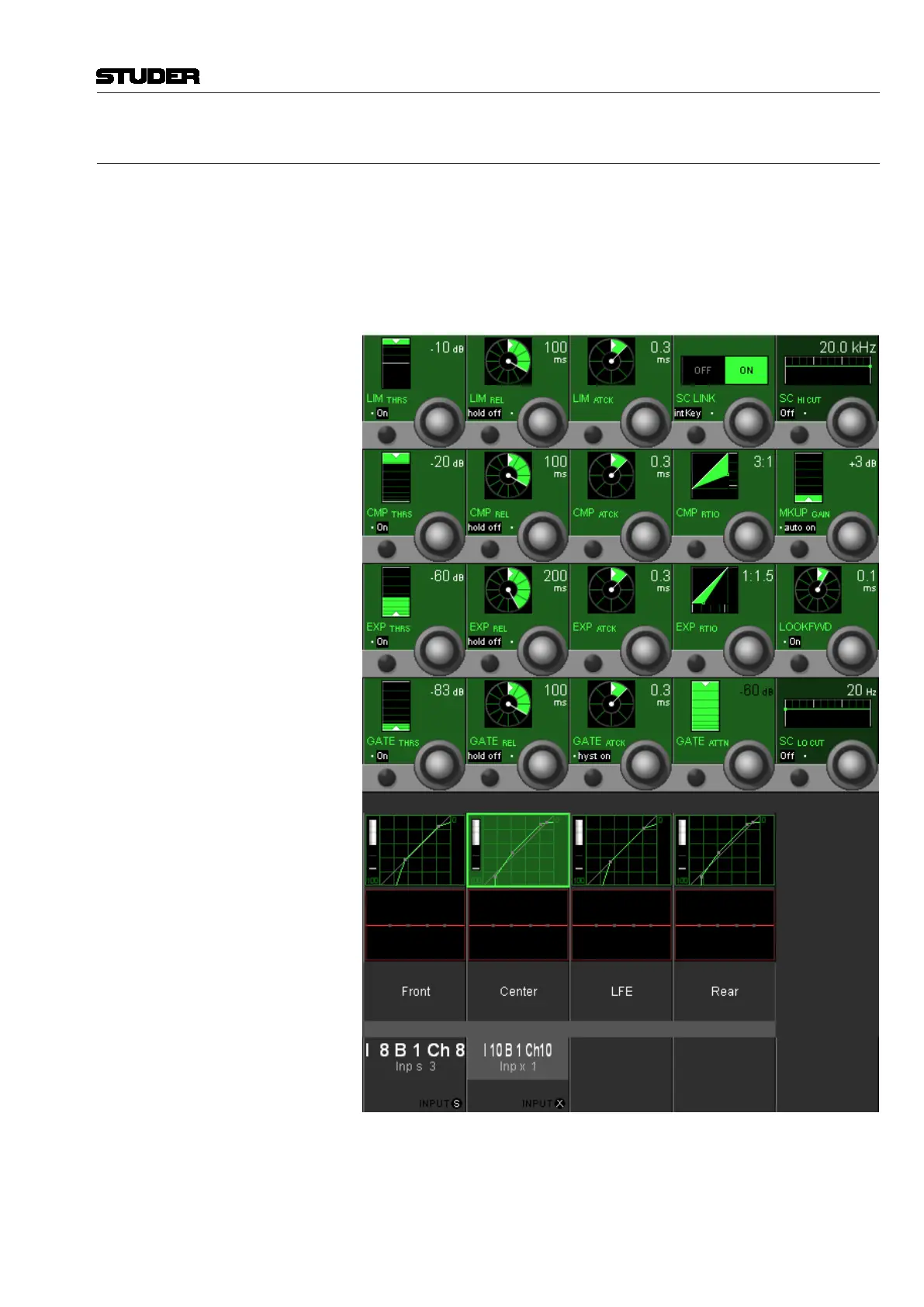

As can be seen below, there is an additional selection possibility in the touch
area that allows modifying the EQ and dynamics parameters individually for
the Front, Center, LFE and Rear signals.
Upon touching one of these fields (e.g. the green ‘Center’ dynamics field) the
display changes to the individual dynamics setting of the ‘Inp x 1’ 5.1 input’s
center channel.
