6.4.5 Core Page

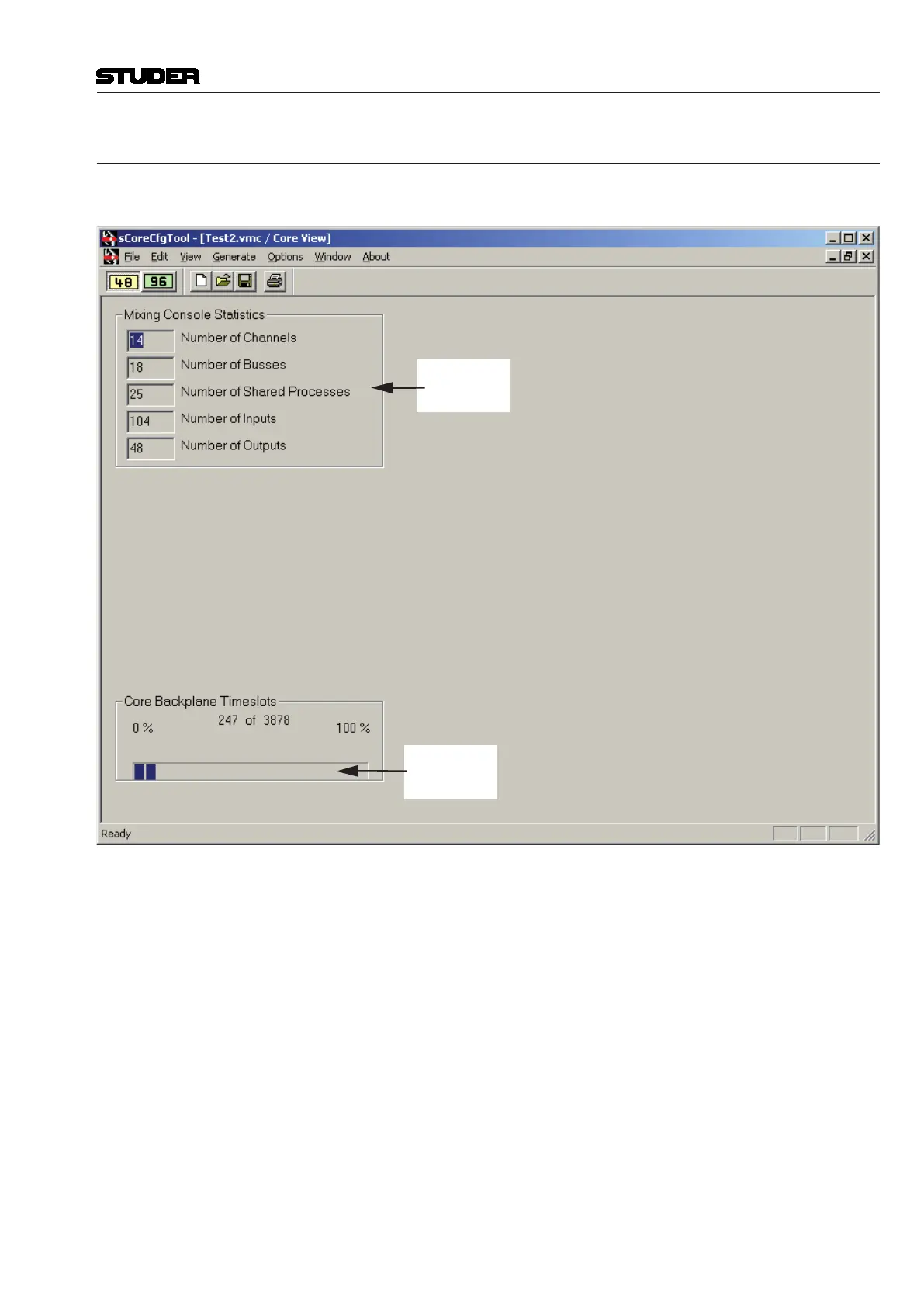

The Core page displays the statistics of the channels, buses, and I/Os, as well
as the occupancy of the DSP core. The page has four parts:
Mixing
Console
Statistics
Load of the
DSP System
Bus
Mixing Console Statistics This area indicates the configured number of channels, buses, shared pro-
cesses (test tone generator, side-chain links), and input and output interfaces.
These numbers reflect all the entries that have been made during the configu-
ration process.
Core Backplane Timeslots Shows the current communication load on the DSP system bus (not to be
mistaken for audio buses in the mixing console). The number of buses must
not exceed 1204.
