Vista 5 M3 Digital Mixing System
1-6 Introduction
Document generated: 28.08.13
SW V4.9
Local Views By touching the graphics shown below the Vistonics
®
rotary controls, the
whole parameter set of that specific curve is displayed, also covering some
of the neighboring channel strips. It is also possible to touch any two curves
in one bay in order to display both at the same time.

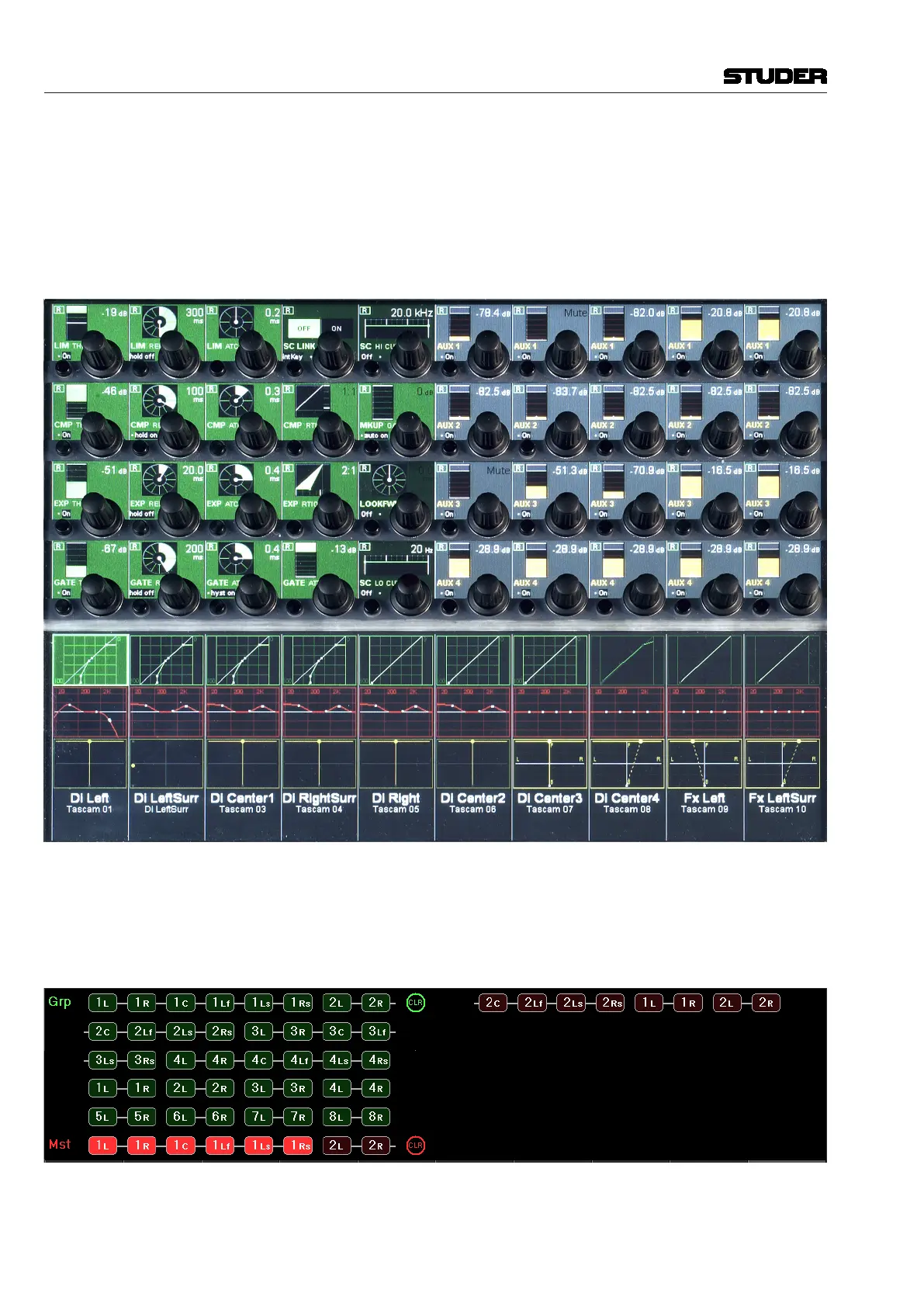

The example below shows the complete dynamics section of the leftmost
channel (the small dynamics view is highlighted), overlaid to a global AUX
view.
This philosophy is completed by three hardware keys underneath the Viston-
ics
®
display, showing different combinations of parameters as well as the bus
assignment of that specific channel, covering the whole Vistonics
®
area.
Bus Assign View: (here, channels can directly be assigned to a bus)
