Vista 5 M3 Digital Mixing System
Introduction 1-15
Document generated: 28.08.13
SW V4.9

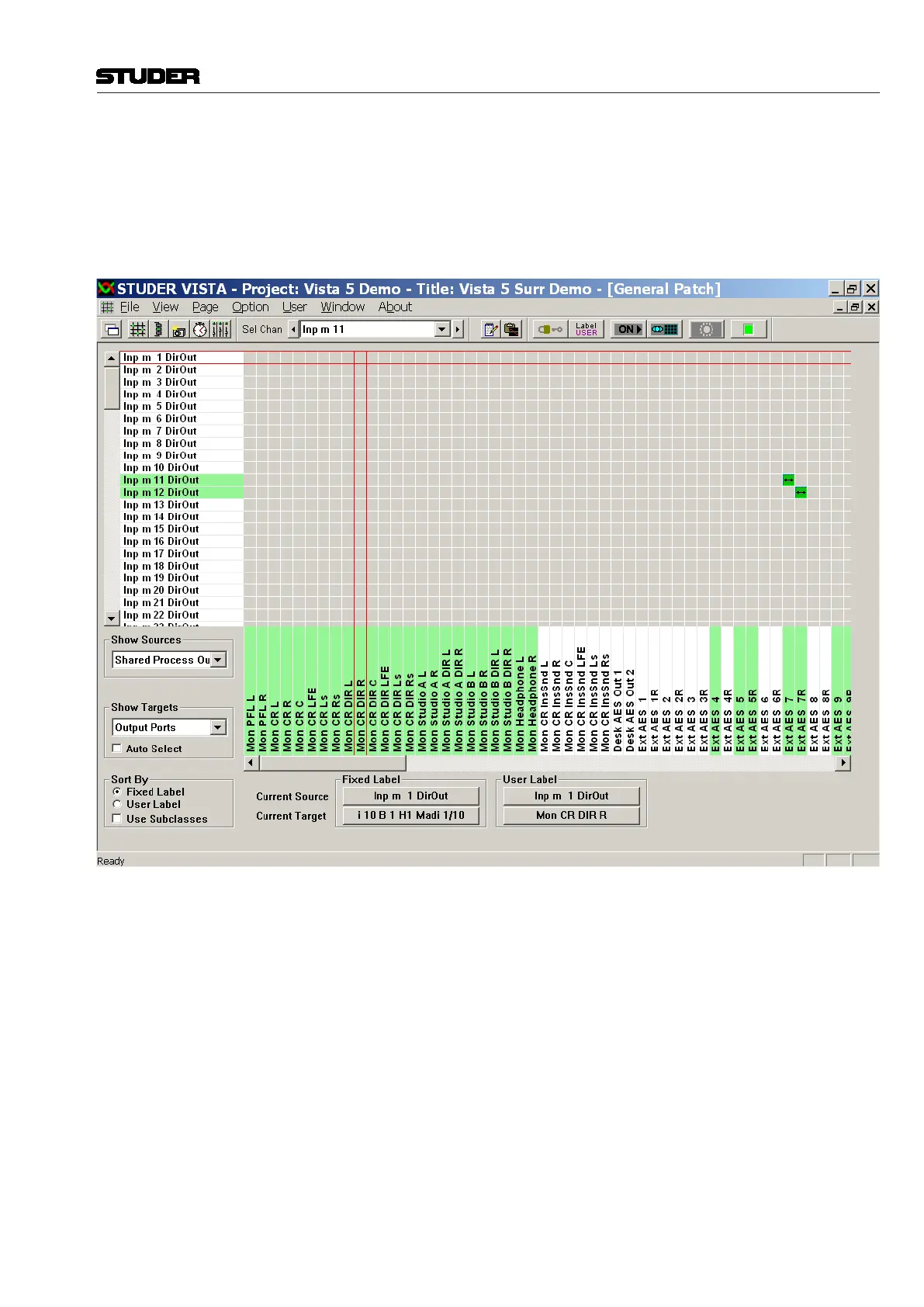

Within the General Patch window, the various cross point routing of sources
and targets (destinations) is displayed. For example, it will show which audio
signals (AES/EBU in, Direct outs, etc.) connected to the DSP sections are
assigned to the corresponding channels and outputs (Input channel, MADI out
etc.). These connections are stored within Snapshots and Presets. The sources
and targets can be identified by Fixed, Device, Inherited, or User labels.
