16 SCore Live
Document generated: 20.09.13
OFF

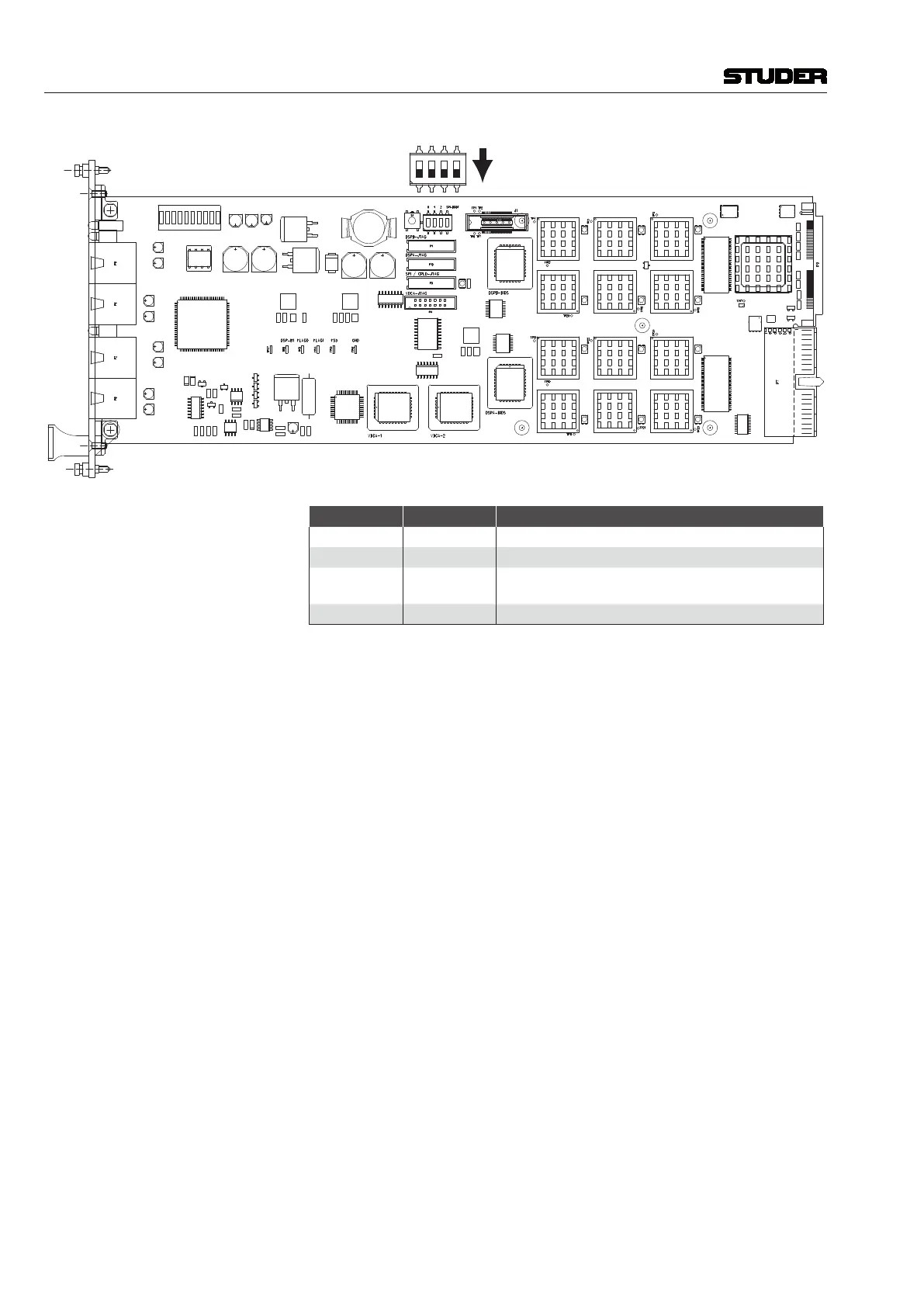

S2 Default
Setting:
1 2 3 4
LEDs IDLE / FAIL
IDLE FAIL
ON OFF
Card is ready and waiting for code
OFF OFF
Card is processing
OFF ON
Card has detected an error and is disconnected from the
TDM Bus
ON ON
Card is booting code
(HD) LOCK Indicates a valid HD link signal at the corresponding input.
DIP Switch S2 Used for factory testing only. During normal operation, all segments must be
set to OFF.
