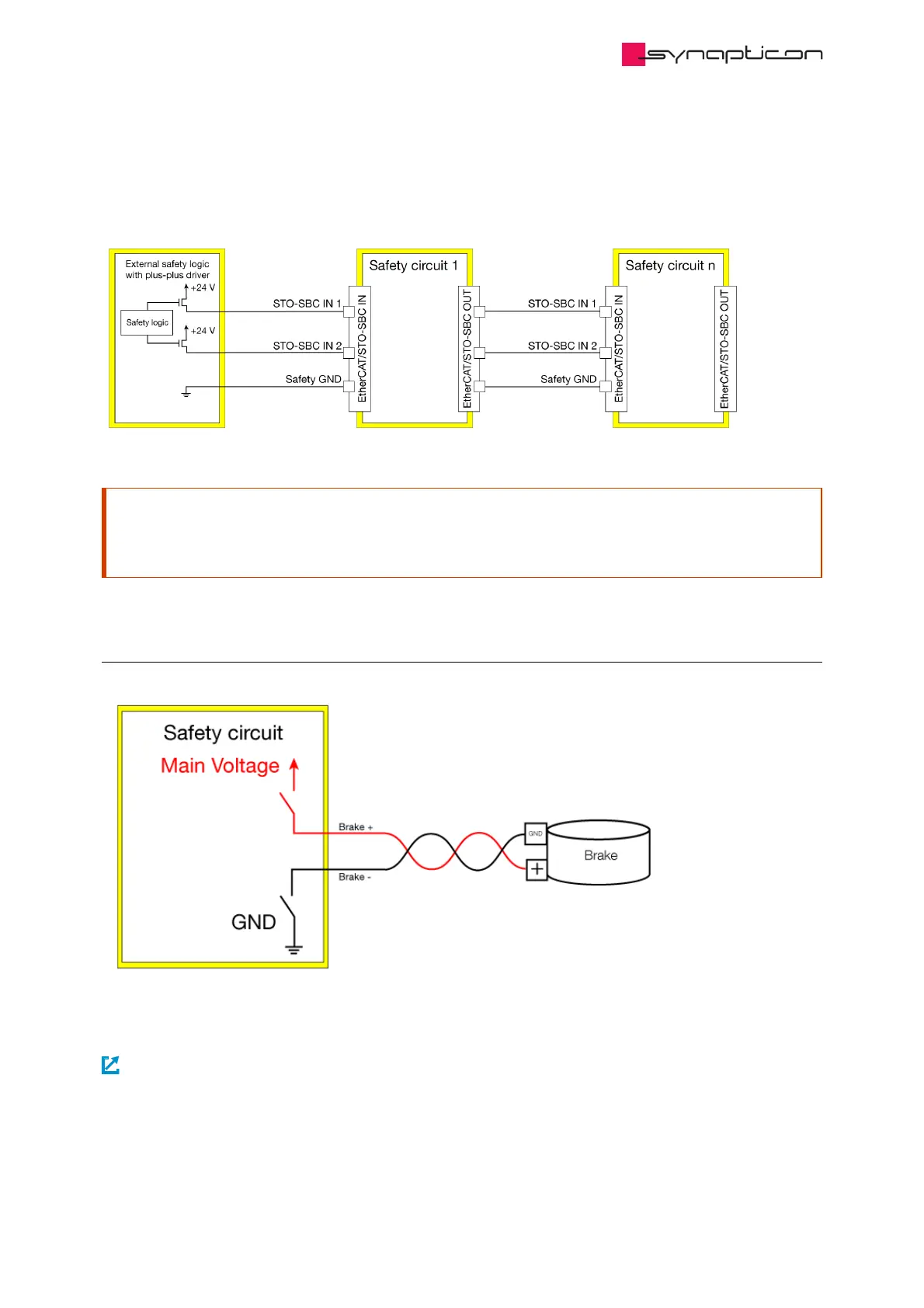

1.2.5.3.2.3 Safety PLC PP (Plus-Plus output) + drives
Allows safety functions up to SIL 3, PL e, cat.3.
Attention
In case of multiple drive connection, ensure that the output driver has sufficient current driving
capability.
1.2.5.3.3 Connection diagram for the brake
Now you are ready to use the feature:
Safety functions
